Description
Overview

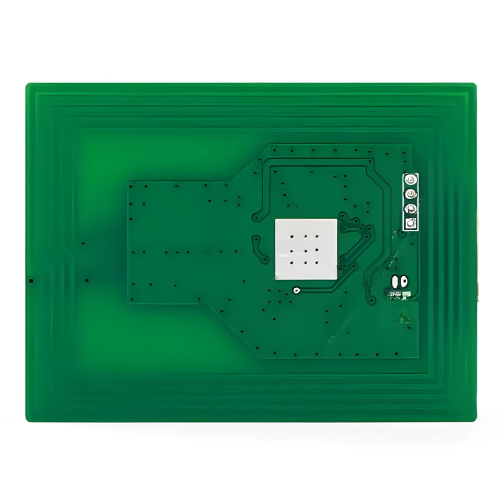

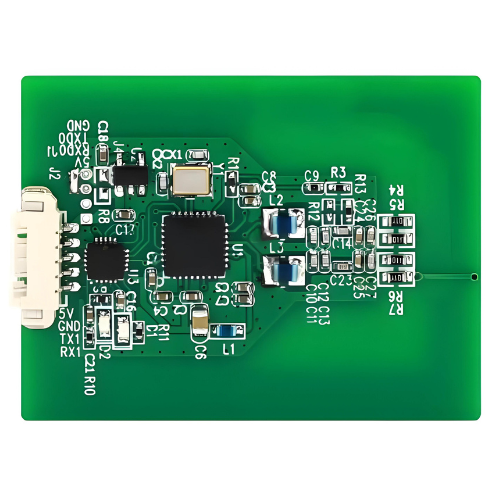

This Asset Track Pro RIFD Reader PCBA HF Module, operating at a frequency of 13.56MHz, provides efficient and reliable data reading for various applications.
Technical Specifications
| Working Frequency | 13.56Mhz |
| Support Protocol | Support ISO14443A, ISO 15693 |
| Reading Distance | 0 to 1.18 (0 to 3cm) (reading distance is related to tag type, transmit power and application environment) |
| Power | DC 5V |
| Reading Current | 100mA |
| Stand-By Current | 40mA |
| Working Temp. | -4℉ to 140℉ (-20℃ to 60℃) |
| Storage Temp. | -22℉ to 158℉ (-30℃ to 70℃) |
| Storage Humidity | 5% to 95%RH no condensation |
| Size | 2.36 in x 1.57 in (60mm x 40mm) |
| Weight | About 0.35 oz. (10g) |
