Description
Overview

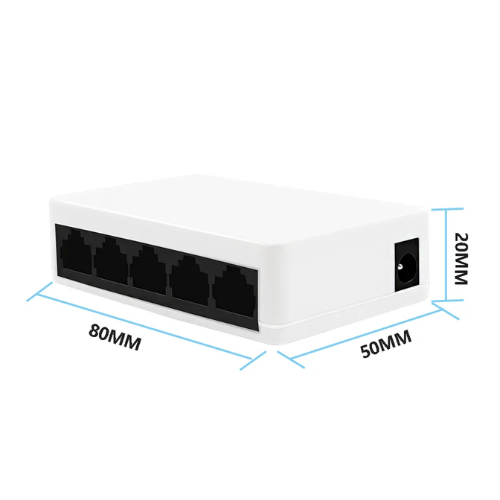

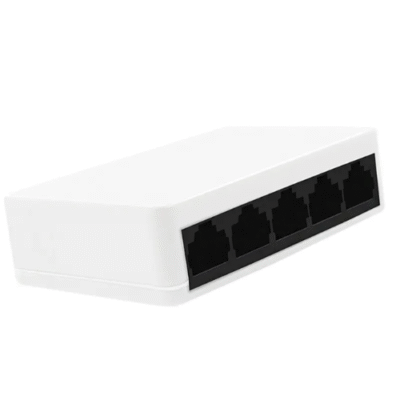

Asset Track Pro RJ 45 Ports internet Plastic Ethernet Switch adhering to IEEE802.3 and IEEE802.3u, has 5 auto-adjusting RJ45 ports supporting Auto-MDI / MDIX and flow control. It learns and ages MAC addresses automatically, has LED indicators for power and link status, is housed in a plastic case for desktop use, and is powered by a 5 V DC / 1 A adapter. Dimensions are 81 mm x 51 mm x 21 mm.
Features
- Complies with IEEE 802.3, IEEE 802.3 u standards.
- Supports IEEE 802.3 x flow control, backpressure for half-duplex mode.
- Supports MAC address auto-learning and auto-aging.
- LED indicators for monitoring power, link
- Plastic case
Technical Specifications
| Private Mold | NO |
| Ports | 5 |
| Function | LACP, QoS, SNMP, Stackable, VLAN Support |
| Device Type | Mini Design Network switches |
| Plastic Case | Desktop / Wall-mounted |
| Chipset | Realtek 8370 |
| Package | Neutral packing / OEM available |
| Network port | 5 port 10 / 100 Mbps RJ 45 Ports |
| Selling Units | Single item |
| Single package size | 10.63 in x 9.45 in x 10.83 in (1400 mm x 850 mm x 650 mm) |
