Description
Overview

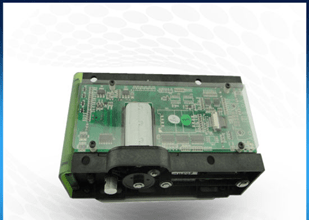

HCT-A6 series motorized card reader/writer supports RF/IC card R/W and magnetic card R, which is a product created from many years of technology and experience accumulation of HCT and the market demand.
HCT-A6 is designed based on the development concept that integrates multiple functions. Careful material selection, rational structure and stable circuit design make it a highly reliable product, meanwhile, its bezel is designed with a user-friendly LED; all these enable HCT-A6 to better meet the market requirements for motorized card reader/writer.
Features
- EMV and PBOC certified.
- Supports ISO7810/7811 magnetic card reading only.
- Supports ISO7816-2 cont. HCT IC card reading/writing.
- Supports ISO14443-A MIFARE Type A/B card reading/writing.
- Jitter card-in function effectively precludes unauthorized card reading.
- Protruding bezel: for anti-theft is available
- Bezel with LED light: provides card insertion indication and/or lighting and prevents the card being left inside.
- Independent sensor design makes reader maintenance easy.
- Dustproof sensor lens protects sensor from dust and/or the other foreign materials.
- Mechanical shutter for protection against dust and/or the other foreign materials in the bezel position enhances the reliability of the card reader.
- Four-set driving wheels: ensure the card transmission stability and liability and prevent card jam or block.
- One group of driving wheels in front of MAG-head: enables automatic re-reading, which increases the success rate of card reading.
- Card detecting function automatically handles abnormal cards (broken card, in complete card, etc.) and is able to eject card in case of power failure.
- Self-balancing MAG-head reading function provides stable reading and easy maintenance.
- High-performance plastic materials: ensure reading precision and product consistency.
Technical Specifications
| Operating Frequency | 13.56 MHz |
| Power Supply | DC12V ± 5%,2A |
| Quiescent Current | 100mA |
| Magnetic Recording Capacity | Track 1 (IATA): Max. of 79 CHAR HCTERS (6 bits + 1 parity) Track 2 (ABA): Max. of 40 CHAR HCTERS (4 bits + 1 parity) Track 3 (MINTS): Max. of 107 CHAR HCTERS (4 bits + 1 parity) |
| Magnetic Coervicity | 24k to 320k A/m (300 to 4000 OE) +/-10% |
| Service Life Magnetic Head | ≥ 800,000 passes |
| IC Contact | ≥ 500,000 passes |
| RF Communication | Speed 105k bps |
| Weight | 13.757 oz (390g) |
| Operation Temperature | 32 F to 122 F (0°C to 50°C) |
| Storage Temperature | -13 F to 176 F (-25°C to 80°C) |
| Humidity | 0 to 90% RH without condensation |
