Description
Overview

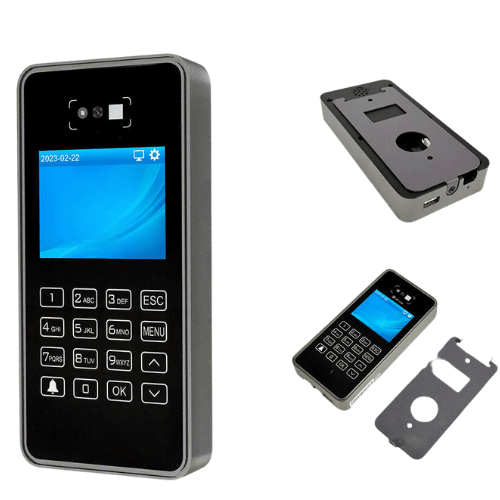

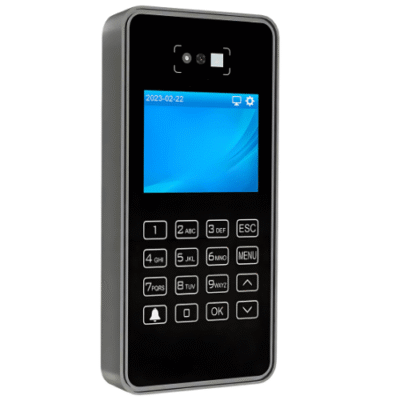

This TCP RFID Keypad Access Control Card Reader has a frequency of 13.56 MHz, a dimension of 165×80×25mm and an operating temperature of 0℃ to 45℃.
Technical Specifications
| Frequency | 13.56 MHz |
| Screen | 2.8 Inch Color Screen |
| Input Mode | Touch keyboard |
| Operation System | LINUX 4.19 |
| CPU,NPU | ARM Cortex-A7 800M, 800G（0.8T） |
| RAM | 256MB DDR3 |
| ROM | EMMC Flash 4GB |
| Logs Capacity | 500000 |
| Verification | QR code, password, ID Card (IC card optional) |
| QR Code Function | Support dynamic QR code, Card QR code, Visitor QR code |
| QR Code Capacity | 100,000 |
| Card Capacity | 5000, ID Card Standard, IC Card Optional |
| Password Capacity | 5000 |
| USB | USB2.0 x 1 ，Support U disk import/export data |
| Power Supply | DC12V 2A |
| Network Communication | TCP/IP, USB type A, WIFI (optional) |
| Size | 165×80×25mm |
| Working Temperature | 0℃ to 45℃ |
| Working Humidity | 20%～90% |
