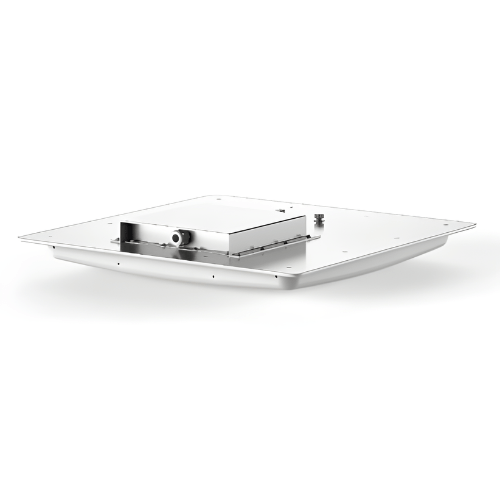

Asset Track Pro TCP or IP Communication RFID Reader – Frequency 902 MHz to 928 MHz or 865 MHz to 868 MHz
Asset Track Pro TCP or IP Communication RFID Reader – Frequency 902 MHz to 928 MHz or 865 MHz to 868 MHz - Image 2
Asset Track Pro TCP or IP Communication RFID Reader – Frequency 902 MHz to 928 MHz or 865 MHz to 868 MHz - Image 3
Asset Track Pro TCP or IP Communication RFID Reader – Frequency 902 MHz to 928 MHz or 865 MHz to 868 MHz - Image 4

Asset Track Pro TCP or IP Communication RFID Reader – Frequency 902 MHz to 928 MHz or 865 MHz to 868 MHz

A seamless inventory management with our RFID reader of ISO 18000-6C protocol, TCP or IP communication, and has 82 ft (25 m) stable read range.

SKU: ATPUHF-711 Category:

Description

Features

  • Software with different programming language
  • The output power is adjustable
  • Waterproof and sunshine defending



Technical Specifications

Frequency 902 MHz to 928 MHz or 865 MHz to 868 MHz
Protocol (EPC C1 Gen2) ISO 18000-6C
Read Range Stable reading range 82 ft (25 m)
Chip Impinj R2000 Chip
Tag Handing Volume 0 tags to 200 tags
Communication Port TCP or IP
Software SDK or DEMO
Power Supply 12 V 3 A
Shell Material ABS
Reading Range 0 ft to 98.4 ft (0 m to 30 m)
Antenna Gain 12 dBi Linear Polarization
Input or Output Port 2 channel relay output (selectable), 2-way I or O input
Development Package Provide DEMO software, SDK & C#, VC, Java development routines
Features 6000 V industrial high voltage lightning protection, extremely cold area warm treatment, anti-copy
Size  0.4 in x 0.4 in x 0.05 in (450 mm x 450 mm x 50 mm)
Weight  11.0 lb (5 kg)
