Description
Overview

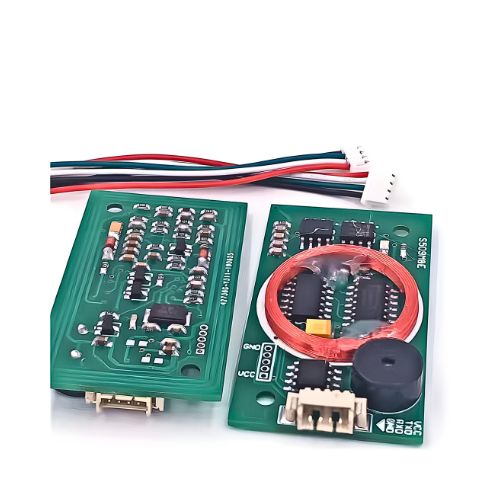

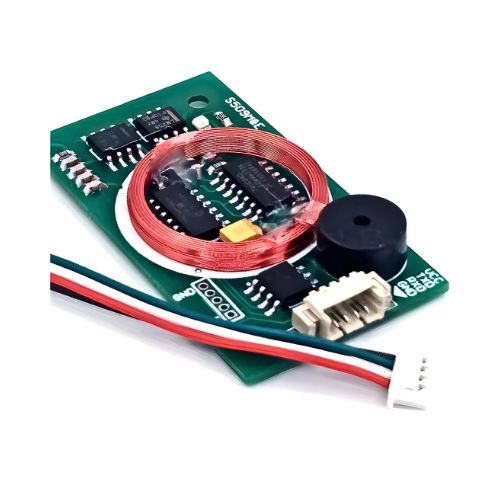

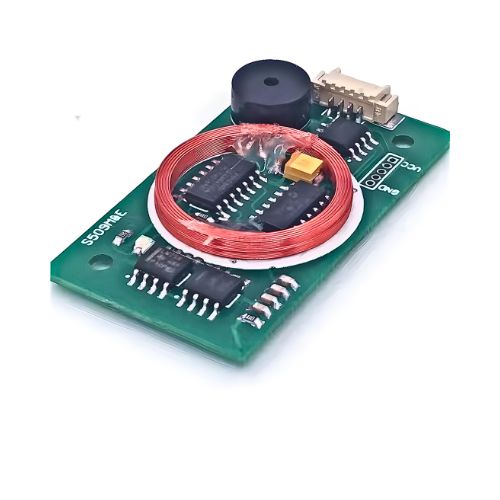

Asset Track Pro 13.56 MHz RFID Reader Modules developed based on ISO or IEC 14443-1, 14443-2, 14443-3, 14443-4 and ISO 15693 international standard protocols. It adopts highly integrated special card reading chip, advanced watchdog and voltage monitoring circuit project design and features a high degree of integration, strong anti-interference ability, small size and more stable performance.
Technical Specifications
| Frequency | 13.56 MHz |
| Read-Write Chip | MFRC 500, MFRC 400, MFRC 531, MFRC 632 |
| Baud Rate | 9600 bit per second to 115200 bit per second |
| Support Standard, Protocol | ISO or IEC 14443-A or ISO or IEC14443-B |
| Sheathing Material | ABS |
| Power Supply or Current | DC 5 V |
| Interface | RS 232, RS 485, TTL |
| Working Distance | > 1.97 in (0.16 ft) |
| Operating Temperature | -14 °F to +158 °F (-26.67 °C to 70 °C) |
| Storage Temperature | -4 °F to 176 °F (-20 °C to 80 °C) |
| Dimension | 1.51 in x 0.75 in x 0.35 in (38.35 mm x 19.05 mm x 8.89 mm) |
| Weight | 0.28 oz (28.3 g) |
