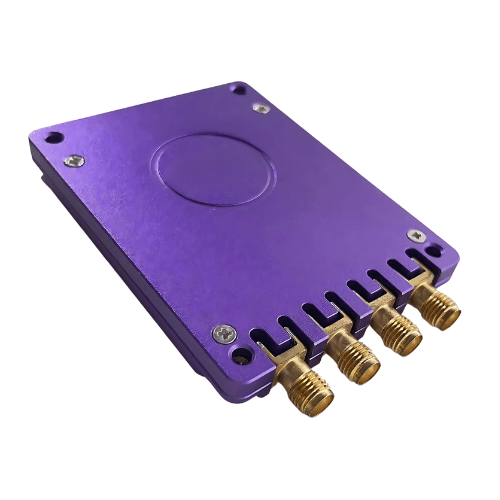

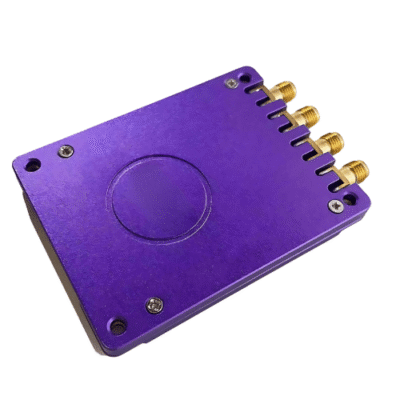

Asset Track Pro UHF 860 MHZ To 960 MHZ High Power 30 dB RFID Reader

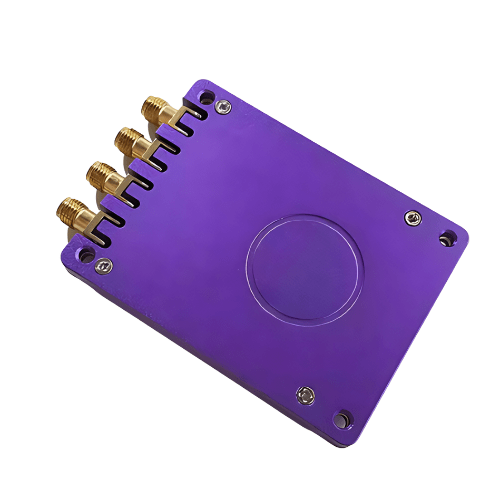

Asset Track Pro UHF 860 MHZ To 960 MHZ High Power 30 dB RFID Reader - Image 2

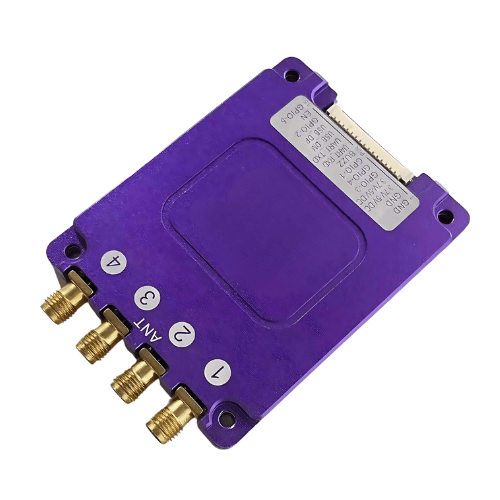

Asset Track Pro UHF 860 MHZ To 960 MHZ High Power 30 dB RFID Reader - Image 3
Asset Track Pro UHF 860 MHZ To 960 MHZ High Power 30 dB RFID Reader - Image 4

Asset Track Pro UHF 860 MHZ To 960 MHZ High Power 30 dB RFID Reader

Lightweight at 3.52 oz with RF output 33 dBm, rapid recognition >600 times per second and a read range of 32.80 ft with 12 V or 3 A power supply.

SKU: ATPUHFMHZ-113 Category:

Description

Technical Specifications

Type RFID Reader Module
Frequency 860 MHz to 960 MHz
Protocol ISO 18000-6 B or 6 C (EPC C1G2)
Certification CE FCC ROHS
Working Humidity <95% RH
Operating Temperature -4 °F to 140 °F (-20 °C to 60 °C)
Storage Temperature -40 °F to 185 °F (-40 °C to 85 °C)
Size 2.84 in x 2.05 in x 0.29 in (72.58 mm X 52.58 mm X 7.5 mm)
Weight 3.52 oz (100 g)

Description

Technical Specifications

Type RFID Reader Module
Frequency 860 MHz to 960 MHz
Protocol ISO 18000-6 B or 6 C (EPC C1G2)
Certification CE FCC ROHS
Working Humidity <95% RH
Operating Temperature -4 °F to 140 °F (-20 °C to 60 °C)
Storage Temperature -40 °F to 185 °F (-40 °C to 85 °C)
Size 2.84 in x 2.05 in x 0.29 in (72.58 mm X 52.58 mm X 7.5 mm)
Weight 3.52 oz (100 g)
