Description
Technical Specifications

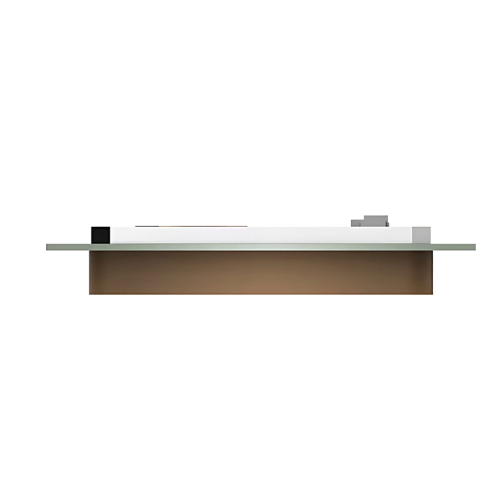

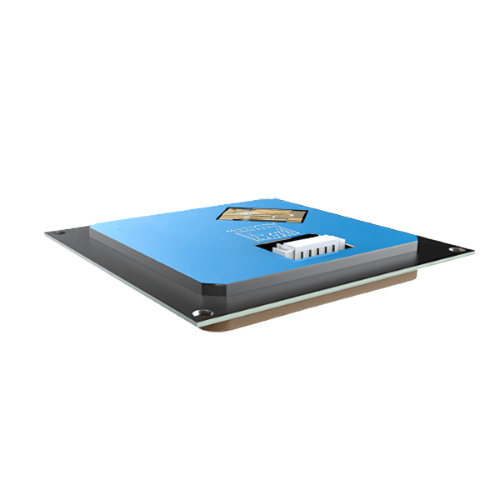

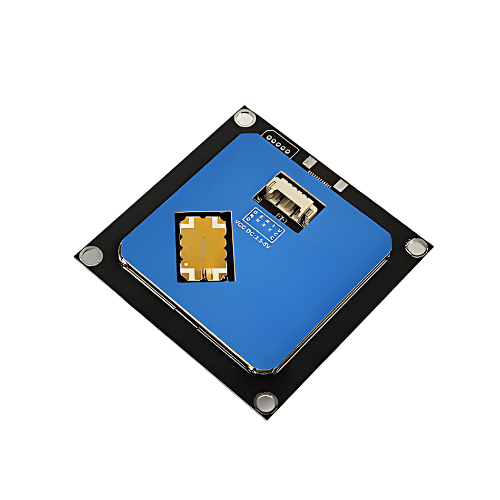

| Type | RFID Reader Module |
| Frequency | 860 MHz to 960 MHz |
| Protocol | ISO 18000-6 C (EPC C1G2) |
| Chip | PR 9200 |
| Working Voltage | DC 3.5 V to 5 V |
| Write Range | >200 mm |
| Read Range | >1500 mm |
| Power | 18 dBm to 26 dBm |
| Reading Mode | Command or Automatic |
| Application | Hospital and Medical |
| Operating Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Size | 1.96 in x 1.96 in x 0.33 in (50 mm X 50 mm X 8.5 mm) |
| Weight | 2.20 lb (1 kg) |
