Description
Overview

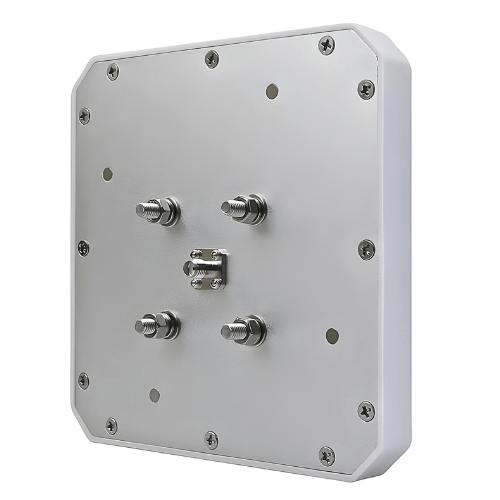

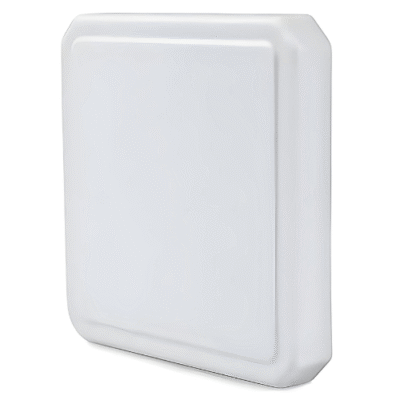

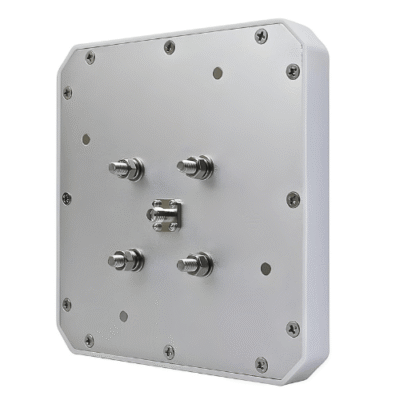

Asset Track Pro UHF RFID 902-928Mhz Antennas long distance 6 dBi directional panel antenna is a high performance 5.5dBi UHF circular polarization antenna. It can be widely applied in many RFID application systems such as logistics, terminals, parking lots, shopping malls, toll stations, access control, and anti counterfeit and industrial production process control system.
Features
- Circular polarization
- SMA-K connector
- PC radome material
- F4B high frequency board and Nickel plated copper radiation material
Technical Specifications
| Frequency | 840 MHz to 960 MHz |
| Protocol | ISO 18000-6C |
| Gain | 6 dBi |
| Polarization | Circular |
| Beam Width | Horizontal 106 ° Vertical 106 ° |
| VSWR | ≤ 1.3 |
| Impedance | 50 Ω |
| Axial ratio | ≤ 2 dB |
| Connector | SMA K |
| Effective Wind Load Area | ≤ 0.66 ft 2 (≤ 0.2 m 2) |
| Radiation Material | F4B high frequency board and Nickel plated copper |
| Radome Material | PC |
| Radome Color | White |
| Operation Temperature | – 40 °F to 131 °F (- 40 °C to 55 °C) |
| Antenna Size | 5.12 in x 5.12 in x 0.71 in (130 mm x 130 mm x 18 mm) |
| Net Weight | 1.32 lb (0.6 kg) |
