Description
Technical Specifications
| Type | Passive UHF RFID Reader |
| Protocol | ISO or IEC 18000-6C and 6B, EPC Class1 Gen2 |
| Frequency | Worldwide 840 MHz to 960 MHz, US 902 MHz to 928 MHz, EU 865 MHz to 868 MHz |
| Antenna | Built-in 12 dBi linearized polarization RFID antenna |
| Transmit Power | 0 dBm to 30 dBm adjustable |
| Working Mode | Read & write supported |
| Read & Write Range | Read 3.28 ft to 49.21 ft (1 m to 15 m) adjustable, tag and environment dependent |
| Read Prompt | Buzzer |
| Anti-Collision | Support multiple tags reading |
| Reading Speed | Max. 100 tags per sec |
| Software Kits | Provide free Demo for testing and SDK for development |
| Software Compatibility | Win XP, Win7, Win8 or Win10 |
| Material | ABS Waterproof |

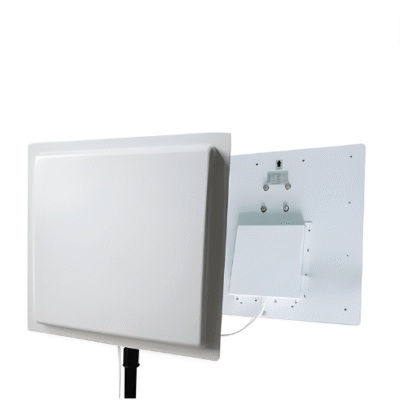

| Mounting | Bracket |
| Data Interface | RS232 or UART and Wiegand26 or 34, RS485 |
| Power Supply | Single +9 V to 12 V DC |
| Operating Temperature | 14 °F to 140 °F (-10 ℃ to +60 ℃) |
| Operating Humidity | 20 % RH to 90 % RH |
| Size | 17.52 in × 17.52 in × 2.17 in (445 mm x 445 mm x 55 mm) |
