Description
Overview

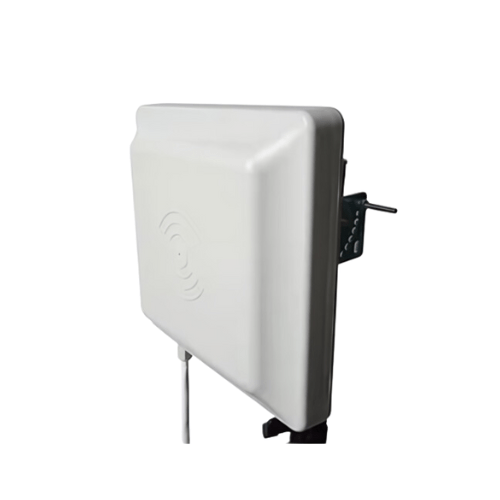

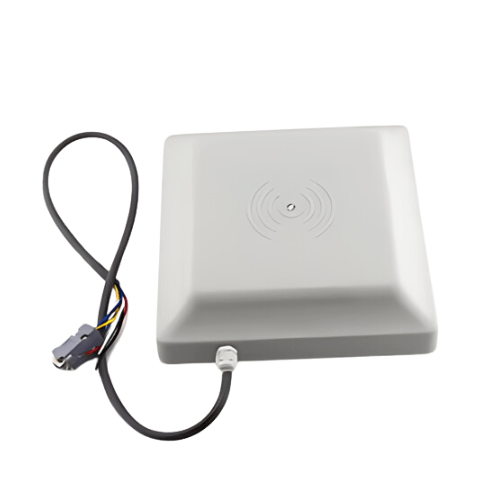

Asset Track Pro UHF rfid long range reader with Wiegand has many advantages of more protocol supporting, fast reading, more labels identification, circular polarization antenna and compact design. This reader is widely used in all kinds of RFID systems.
Technical Specifications
| Working Frequency | National standard (920 MHz to 925 MHz), America standard (902 MHz to 928 MHz), or customize other frequency |
| Support Protocol | ISO18000-6B, ISO18000-6C (EPC GEN2) |
| Frequency Hopping | FHSS or fixed frequency set by software |
| Working Way | Automatically reading card at a regular time, can set reading card way |
| Frequency Power | 0 dBi to 30 dBi, be adjusted by software |
| Reading Distance | 3.2 ft to 16.4 ft (1 m to 5 m) |
| Reading Sensitivity | Dual polarization reading |
| Reading Speed | One label 64-bit ID number < 6 ms |
| Antenna | Build-in circular polarization antenna, gain 8 dB /build-in linear polarization antenna, gain 12 dBi |
| Interface | RS485, RS232, Wiegand26, Wiegand34, RJ45 |
| Working Voltage | DC 12 V |
| Working Status Indication | Buzzer |
| Power | 1W |
| Working Temperature | -4 °F to 176 °F (-20 ℃ to 80 ℃) |
| Storage Temperature | -40 °F to 257 °F (-40 ℃ to 125 ℃) |
| Working Humidity | 20 % to 95 % (no condensing) |
| Dimension | 8.9 in x 8.9 in x 2.3 in (227 mm × 227 mm × 60 mm) |
