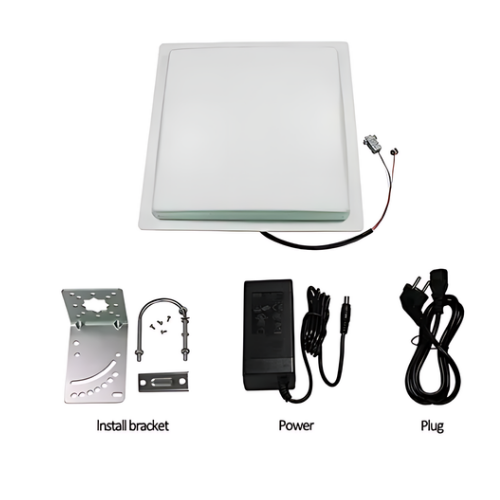

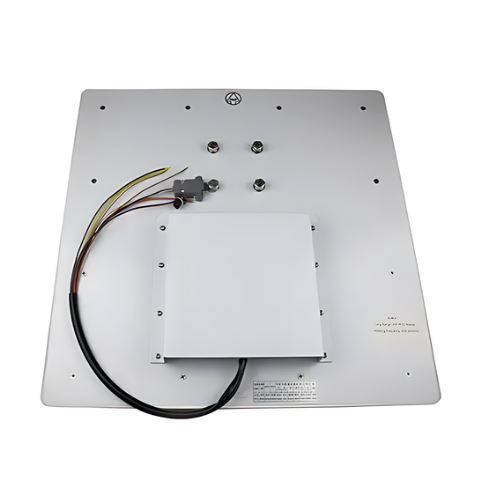

Asset Track Pro -UHF RFID Reader Wiegand Raspberry Integrated Reader Parking– With The Frequency From 865 MHz to 928 MHz

This UHF RFID Reader integrates seamlessly with Raspberry Pi for efficient parking management. Versatile, reliable, and cost-effective.

SKU: ATPUHF-888 Category: RFID Readers, Tag, Accessories

Description

Working Frequency	902 MHz to 928 MHz or 865 MHz to 868 MHz
Protocol	ISO18000-6C (EPC C1 GEN2)
Radiofrequency Power	0 dBm to 30 dBm (Adjustable)
Interface	RS232, RS485, Wiegand
Software & SDK	DEMO and C#, VC, VB, Java, DELPH, etc.
Encryption	Can be directly encrypted, copy prevention.
Industrial Lightning Protection	6000 V industrial lightning protection
Low-Temperature Protection	Northeast, Northwest extremely cold region, low-temperature protection
Frequency Modulation Way	Broad spectrum frequency hopping or fixed frequency
Input Or Output Port	Two-way relay output (customized), one-way trigger input
Antenna Gain	12 dBi polarization
Working Way	Buzzer
Power	12 V per 3 A Adaptor
Shell Material	ABS
Reading Distance	0 ft to 82.02 ft (0 m to 25 m)
Item Size	17.72 in x 17.72 in x 1.97 in (450 mm x 450 mm x 50 mm)
Net Weight	11.02 lb (5 kg)
