Description
Overview

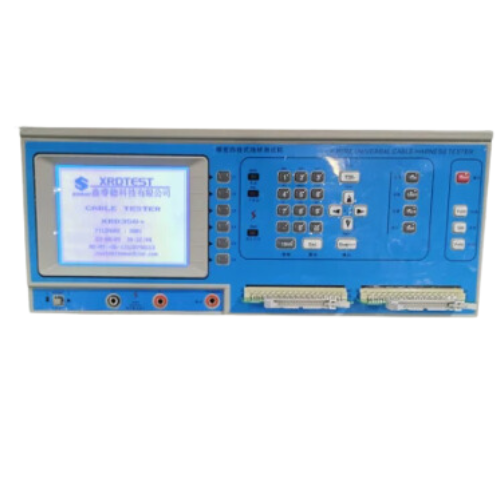

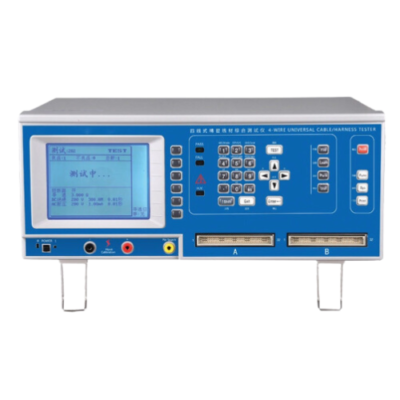

This Asset Track Pro USB Universal Network Tester has on resistance test cond 50m Ω to 500 Ω Capacitance measurement C 10 PF to 1000 μ f and weight 28.66 lb.
Features
- The system provides Chinese or English free switching interface
- Self diagnosis and self correction
- The system has the functions of automatic scanning
- Automatic point finding
- The system provides advanced instantaneous short circuit
- It can be used for single side standard
- multi section and spot test of wire rod
- Maximum AC1000V, DC1500V test voltage
- The system adopts advanced four wire measurement
- Provide LCR meter module for precise measurement and analysis
- Provide 320 x 240 full Chinese or English large screen graphic LCD display
- Linear conduction, safety regulation and component test are all available
- Fully programmable continuous test
- Various interfaces are available for various applications
Technical Specifications
| Diode Measurement D | 0.0 v to 7.0 v |
| On Resistance Test Cond | 50m Ω to 500 Ω |
| Capacitance Measurement C | 10 PF to 1000 μ f |
| Power Supply | 115 or 230 VAC voltage input ± 10 % |
| Relative Humidity | RH ≤ 75% |
| Temperature | 59 °F to 95 °F (15 °C to 35 °C) |
| Size | 17.91 in x 7.48 in x 13.78 in (455 mm x 190 mm x 350 mm) |
| Weight | 28.66 lb (13 kg) |
