Description
Overview

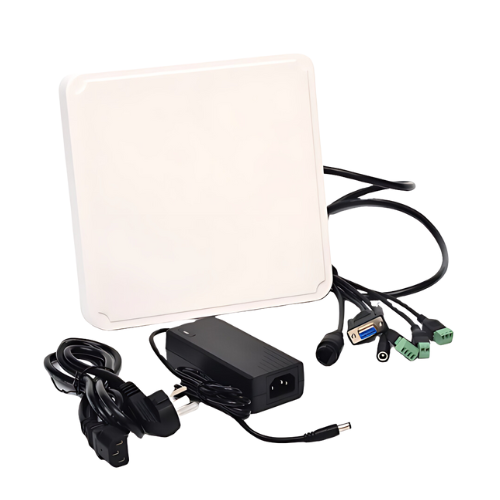

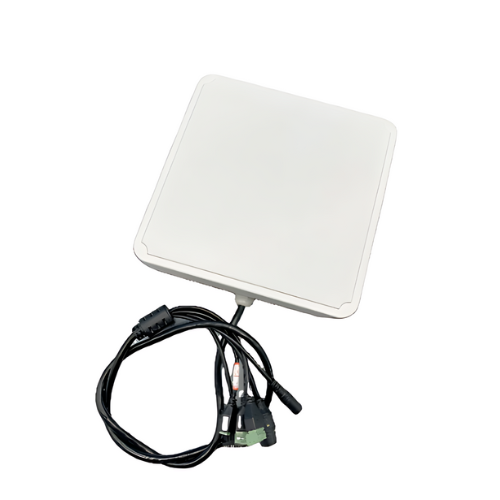

Asset Track Pro UHF RFID reader is suitable for RFID passive all-in-one reader and writer systems in the 902 to 928 MHz frequency band. Physical advantages: small size, beautiful appearance, protection level can reach IP67. Electrical performance advantages: high gain, low standing wave, low axis ratio, high bandwidth, excellent tag reading performance can be achieved within the operating bandwidth.
Technical Specifications
| Frequency | 865 MHz to 868 MHz (EU standard) or 902 MHz to 928 MHz (US standard) |
| Protocol | ISO or IEC18000-6C or IEC18000-6B or EPC C1Gen2 |
| Built-in Antenna | 9 dBi Circular antenna |
| Work Mode | Active or trigger or answer or password or mask mode, |
| Tag Recognition Speed | ≥ 300 pictures per s |
| Communication Interface | 1 x RS-232, 1 x RJ45, 3 x USB2.0 Type A, supports 4G full network or GNSS positioning or Bluetooth or WIFI multiple wireless communication networks. |
| GPIO | 2 relay outputs, 2 optocoupler isolated inputs each or 4 normal input IOs, GPIO x 5 |
| Operation System | Including but not limited to Windows, Android, IOS, Kirin, Tongxin, Hongmeng |
| RF Power | 0 dBm to 33 dBm |
| RSSI Detection | Support |
| Material | ABS Aluminum Alloy |
| Power Supply | DC 9 V to 24 V |
| IP Grade | IP67 |
| Read Distance | 26.25 ft to 39.37 ft (8 m to 12 m) (depends on tag) |
| Operation Temp | -4 °F to 158 °F (-20 °C to +70 °C) |
| Storage Temp | -22 °F to 176 °F (-30 °C to +80 °C) |
| Reader Size | 8.58 in x 8.58 in x 2.56 in (218 mm x 218 mm x 65 mm) |
| Net Weight | 2.65 lb (1.2 kg) |
