Description
Overview

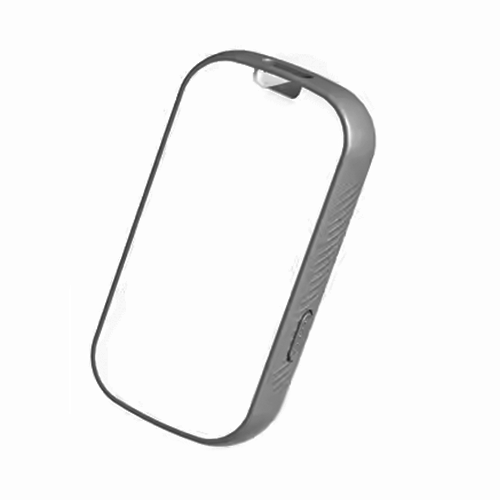

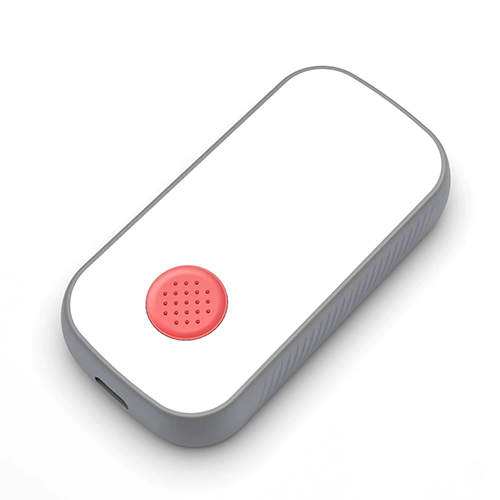

Asset Track Pro BLE GPS Tracker GPS Module, Asset Tracker GPS Tracker is a versatile asset tracking solution that integrates GPS and Bluetooth Low Energy (BLE) technologies. Designed with a panic button for emergency situations, this device is ideal for location tracking, safety management, and asset monitoring. It is particularly useful in applications such as construction site safety, school security, and nursing home management, it offers long-range communication in urban open spaces.
Features
- GPS outdoor and BLE indoor geo-location
- Built in panic SOS button
- 4.35 mi (7 km) communication range
- Low battery indicator
- Built in RFID
- Vibration motor alert
- CE and FCC certified
Applications
- Asset Tracking: Ideal for tracking valuable items over long distances
- Emergency Systems: Can be used as a personal tracker with an SOS panic button
- Fleet Management: Suitable for remote monitoring and fleet location tracking
Technical Specifications
| LoRa Communication Distance | Up to 4.35 mi (7 km) (in urban open space) |
| Tx Power | Max 20 dBm |
| GPS Accuracy | 8.2 ft (2.5 m) CEP |
| Bluetooth Version | BLE 4.2 |
| BLE Communication Distance | Up to 164 ft (50 m) in free space |
| Battery | 540 mAh Type C rechargeable |
| Charging Time | 2.5 hrs @ 5 V or 1 A |
| Operating Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Charging Temperature | 32 °F to 113 °F (0 °C to 45 °C) |
| Dimensions | 2.87 in x 1.57 in x 0.67 in (73 mm x 40 mm x 17 mm) |
| Weight | 1.69 oz (48 g) |
