Description
Overview

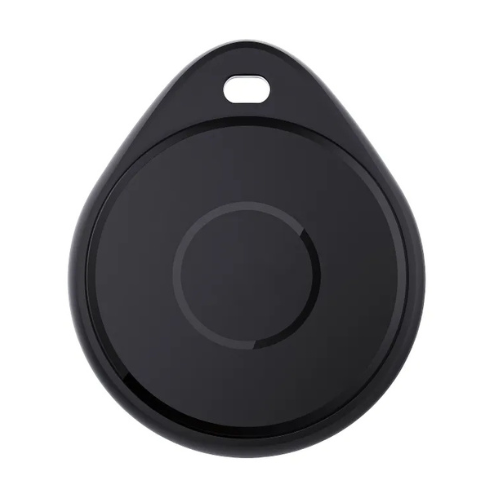

Asset Track Pro’s Bluetooth 5.1 Beacon with RFID, IP67, and Accelerometer W6 Bluetooth Wristband Beacon is an advanced solution designed for personnel tracking, secure access control, and efficient management services. Powered by a replaceable CR2032 battery, the beacon boasts an impressive battery life of up to 13 months, thanks to its ultra-low power consumption. Equipped with Bluetooth 5.1 and a built-in high-end 3-axis accelerometer sensor, the W6 can detect falls, movements, vibrations, and shocks, offering enhanced safety features. With a transmission range of up to 150 meters (492ft) in open areas, the W6 is customizable in terms of color, parameters, and logo, ensuring it meets client-specific needs.
Features
- Firmware updates are done Over the Air (OTA)
- BLE
- Waterproof
- Color and Logo customization (MOQ)
- Replaceable battery
- Pre-configuration parameters
- Customer firmware programming
- SOS emergency button
- In-built RFID
- Customized package
Technical Specifications
| Range | Up to 150 meters (492 feet) in open areas |
| Battery Type | lithium coin CR2032 battery |
| Battery Capacity | 220mAh |
| Default Battery Lifetime | Up to 13 months |
| Battery Replacement | Yes |
| Firmware Update | Over the Air (OTA) |
| Antenna Type | Printed Circuit Board (PCB) |
| Sensors | Mifare Classic 1k EV1 RFID 3-axis accelerometer sensor |
| Led | It uses one red LED light |
| Material | ABS+PC & TPU |
| Bluetooth Standard | Bluetooth 5.1 |
| Color | Can be customized |
| Environmental Conditions | Operational temp: -4 to 140 F (-20°C to +60°C) Storage temp: -4 to 140 F (-20°C to +60°C )(battery not installed) (10°C to 25°C) (battery installed) |
| Protocols | Eddystone & iBeacon: URL, TML and UID |
| Installation | ou need a Neck chain, Wristwear, Keychain, and Hang |
| Waterproof | IP67 |
| Button | Mechanical button |
| Main Chip Used | Nordic nRF52811 |

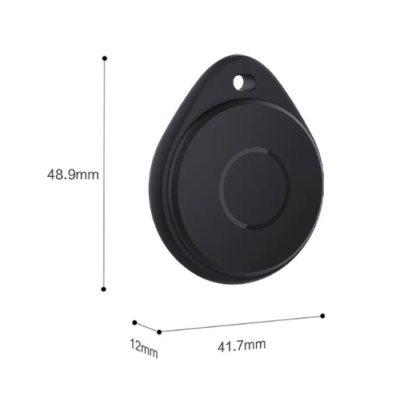

| Dimensions (L X W X H) | 1.92 x 1.64 x 0.47 in (48.9mm x 41.7mm x 12mm) |
