Description
Overview

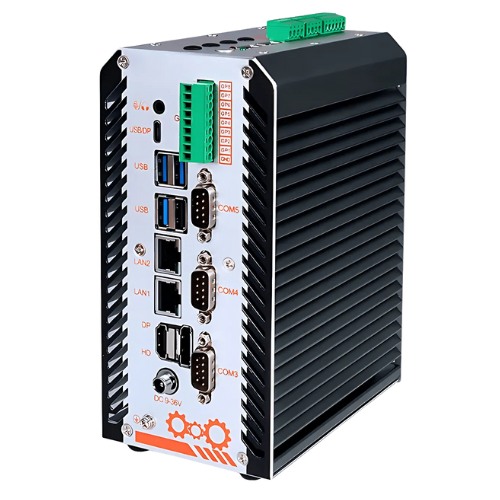

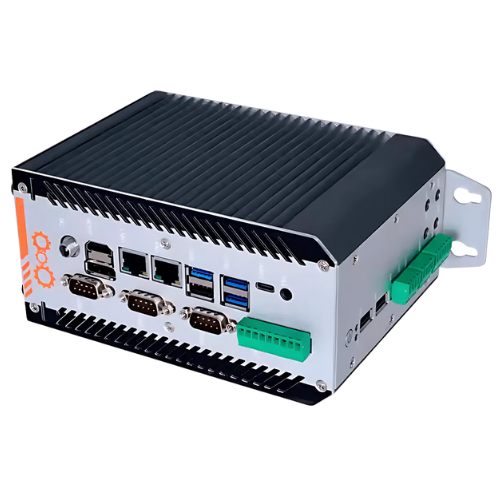

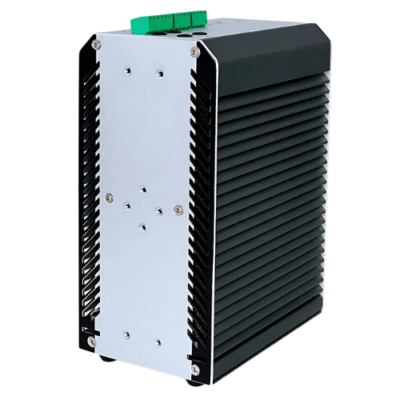

Asset Track Pro’s Compact 12th and 13th Gen Industrial Embedded PC with 2th Gen Edge Industrial Embedded Computer features a compact size of 3.39 in x 8.66 in x 5.08 in (86 mm x 220 mm x 129 mm), making it ideal for space-constrained applications. The device is constructed with sand-blasting and oxidation of aluminum profiles, ensuring durability and resistance to harsh environments.
The device is equipped with Intel Core 12th Alder Lake and 13th Raptor Lake-U/-P CPUs, providing high processing power and efficiency. This makes it suitable for demanding applications that require fast data processing.
The device supports up to 64GB of DDR5 SO-DIMM RAM and features an M.2 Key-M 2280 (PCIe x4 NVMe) SSD slot, allowing for easy expansion of storage capacity.
The device offers a range of interfaces, including 6 COM, 7 USB, 8 GPIO, 1 CAN, 1 H-D2.1, and 1 LVDS, making it suitable for various industrial applications that require multiple connectivity options. Also supports Windows 10, Windows 11, and Linux operating systems, allowing users to choose the best OS for their specific needs and providing flexibility in software development and deployment.
Features
- Low power consumption
- Long distance transmission
- Configurable parameters
- Long standby
- 2 LED indicators
- BLE 5.0
- Skin friendly material
Technical Specifications
| Material | Aluminum profile, iron grey, fanless design |
| Installation | Desktop foot pad (default), 1.38 in (35 mm) industrial rail, wall mount |
| Processor System | Onboard intel core 12th/13th gen -U/-P series processor, TDP 28W; intel core ultra-u / H series processor. UEFI BIOS |
| Memory | 2 x DDR5 SO-DIMM, total maximum 96GB |
| Storage | 1 x M.2 M-key 2280 (PCIe 3.0 x 2 and SATA3.0, hardware option) |
| Display | 1 x HD2.0; 1 x DP; 1 x Type-C (DP+USB3.0) |
| Chassis I/O Interface | DC JACK, 2 x LAN, 1 x HD, 1 x DP, 1 x Type-C(DP+USB) 6 x USB, 3 x DB9 RS232, 2 x terminal RS485, 1 x CAN, 8-bit GPIO, 1 x 2-in-1 audio Switch button, 1 x remote switch interface, 4 x ANT holes |
| Expansion Interface/Function | External TPM2.0 optional 1 x E-Key (PCIe+USB2.0, WIFI/BT) 1 x B-Key (USB3.0 +USB2.0, 4G/5G) |
| Power Supply | DC 9 V to 36 V, 120 W |
| Operating System | Win10, win11, linux |
| Working Temperature | -4°F to 140°F (-20 ℃ to +60 ℃) |
| Storage Temperature | -40°F to 185°F (-40 ℃ to +85 ℃) |
| Working Humidity | 5% to 90% |
| Storage Humidity | 5% to 90% |
| Product Size | 6.85 in × 5.08 in × 3.39 in (174 mm x 129 mm x 86 mm) (without mounting bracket) |
| Weight | About 8.82 lbs (4 Kg) |
