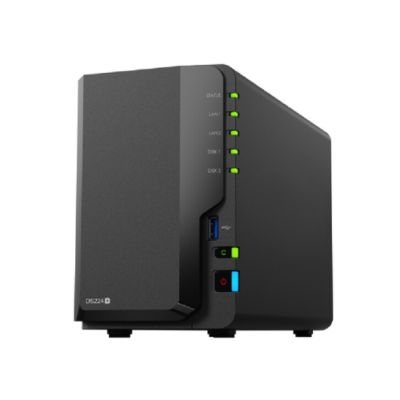

Compact 2 Bay NAS Server with Quad Core CPU and Dual Gigabit LAN – Asset Track Pro

Efficient 2-bay NAS with quad-core CPU, dual Gigabit LAN, encryption, and expandable memory for secure data storage and edge computing tasks.

SKU: ATPDCE-347 Category:

Description

Technical Specifications

CPU Model Intel Celeron J4125
CPU Quantity 1
CPU Core 4
CPU Architecture 64-bit
CPU Frequency 2.0 GHz (base) / 2.7 GHz (turbo)
Hardware Encryption Engine Yes
System Memory 2 GB DDR4 non-ECC
Total Memory Slots 1
Maximum Memory Capacity 6 GB (2 GB + 4 GB)
Drive Bays 2
Drive Type 3.5″ SATA HDD / 2.5″ SATA SSD
Hot Swappable Drive Yes
RJ-45 1GbE LAN Port 2
USB 3.2 Gen 1 Port 2
USB Copy Yes
System Fan 92 mm × 92 mm × 1 pcs
Fan Speed Modes Full-Speed / Cool / Quiet
Brightness Adjustable LED Yes
Power Recovery Yes
Scheduled Power On/Off Yes
Wake on LAN / WAN Yes
Power Supply 60 W adapter
AC Input Voltage 100 V – 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 14.69 W (Access) / 4.41 W (HDD Hibernation)
British Thermal Unit 50.09 BTU/hr (Access) / 15.04 BTU/hr (Hibernation)
Noise Level 22 dB(A)
Operating Temperature 32 °F to 104 °F (0 °C to 40 °C)
Storage Temperature -5 °F to 140 °F (-20 °C to 60 °C)
Operating Humidity 8% – 80% RH
Storage Humidity 5% – 95% RH
Dimensions (H × W × D) 6.50 in × 4.25 in × 9.14 in (165 mm × 108 mm × 232.2 mm)
Weight 2.87 lb (1.30 kg)
