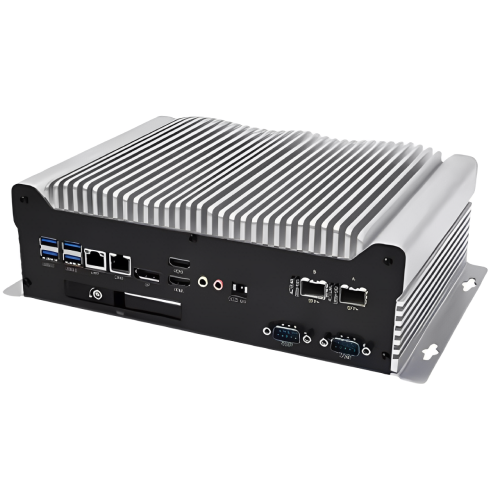

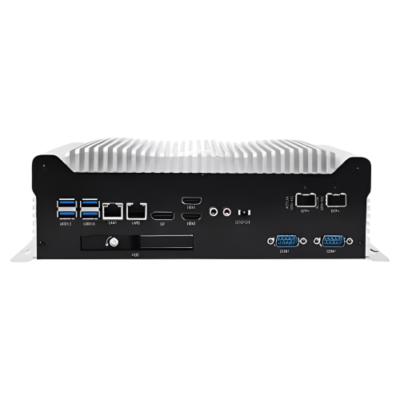

Description
Features
- Supports 10th or 11th Gen LGA1200 Socket
- Supports Comet Lake-5 Processor
- Equipped with Q470E chipset to support vPRO
- Aluminum alloy
- Anti-interference enclosed fanless chassis
- Fully enclosed without fan cooling system
- Cable-free design
- Rich IO interface provide versatile expansion
- Double board design with diverse interfaces
Technical Specifications
| Operating System | Windows 7, Windows 8, Windows 10, Windows 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.), WES 7, Windows 10 IoT |
| Chipset | H470 Chipset (vPRO Tech Non-supported), Q470E Chipset (vPRO Tech Supported) |
| CPU | Socket: Desktop Processors Socket LGA1200, Series and TDP: 10th Gen Core i7, i5, or i3, Max. 65W TDPs, Graphic: UHD Graphics 630 for 10th Gen processor, UHD Graphics 750 for 11th Gen processor |
| RAM | SO-DIMM: 2 x Dual-CH DDR4 2933 or 2666 MHz SO-DIMM Socket, Capacity up to 64 GB, Core i9 or i7 CPUs support DDR4 up to 2933 MHz, Core i5 or i3 CPUs support DDR4 up to 2666 MHz |
| Storage Device | SATA: 1 x SATA 3.0 connector (6 Gb per second), M.2: 1 x M.2 (NGFF) 2280 M-key slot, support PCIex4 Gen 3 NVMe or SATA 3.0 SSD |
| I or O Interface | COM: 4 x COM headers (COM1 or COM2, support RS232 or 422 or 485; COM3 or COM4, support RS232),Ethernet: 1 x i225LM 2.5 GbE, 1 x i219LM GbE, 1 x i225LM 2.5 GbE, 1 x i219V GbE, USB: 4 x USB 3.2 (Gen 2, 6 GB per second), 2 x USB 3.2 header (Gen 1, 5 GB per second), 4 x USB 2.0 header (480 Mb per second), Video: 2 x HD 1.4 (Max Resolution: 4096 x 2160 at 60Hz), 1 x DP (Max Resolution: 4096 x 2304 at 60Hz), Support Triple Displays, Audio: 1 x Mic-in, 1 x Line-out; With 5.1 channels HD Audio Codec Realtek ALC662; 1 x Audio Header, SIM: 1 x Internal SIM card slot connected to M.2 B-key slot, Power Supply: 12V to 28V DC; 1 x DC Jack 0.21 in x 0.09 in (5.5 mm x 2.5 mm), Other: 1 x 8-bit GPIO header with 4 inputs and 4 outputs, Input voltage range: 0V to 5V |
| Additional Internal Interface | 1 x Half Size PCIex16 slot (Suggest the PCIe card less than 25W Power), 1 x M.2 2230 E-key slot (PCIe + USB 2.0, support CNVi), 1 x M.2 3042 or 3052 B-key slot (USB 3.0 or PCIe x1) |
| EMC | CE or FCC Class B, CCC |
| Safety | CE-LVD, RoHS, CCC |
| Humidity | 104°F (40°C) at 10%RH to 95%RH, non-condensing |
| Operating temperature | 14°F to 140°F (-10°C to 60°C) with 2.30 ft per second (0.7 meter per second) Airflow |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) |
| Size
(W x H x D) |
11.42 in x 3.45 in x 7.32 in (290.3 mm x 87.58 mm x 186 mm) |
| Weight | 8.60 lb (3.9 kg) |
