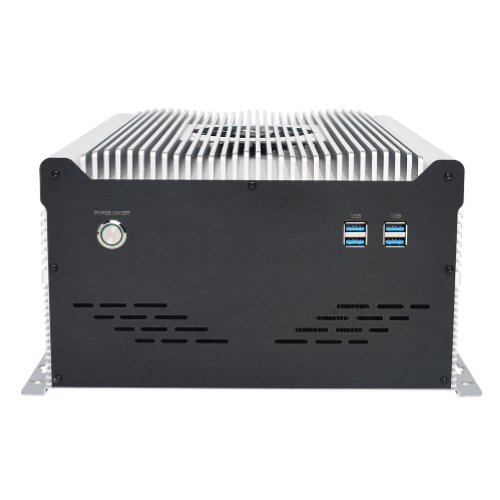

| Supported OS |
Win 10, Win 11, Win 10 IoT, Linux (Ubantu, Dibian, Kali, CentOS, etc.) |
| Chip Set |
|
| Chip Model |
Intel® H770 Chipset |
| xCPU |
|
| Model & Socket |
12-14th Intel® Core i3/i5/i7 Processor, LGA1700 Socket, TDP 32-219W |
| Graphic |
Intel® UHD Graphics 730/770 (depends on th CPU) |
| RAM |
|
| SO-DIMM |
2* SO-DIMM Socket, Dual DDR4-3200 MHz, up to 128GB |
| Storage |
|
| SATA |
12.5” SATA 3.0 7P Slot, 2SATA(RAID 0/1), Optional 4*SATA RAID 0/1/5 |
| MSATA |
1*mSATA 3.0 SSD (6Gbps) |
| M.2 |
1* M.2 (NGFF) 2280 M-key Slot, support 2NVME PCIe 4.0 x4, 1PCIe 3.0 x2 |

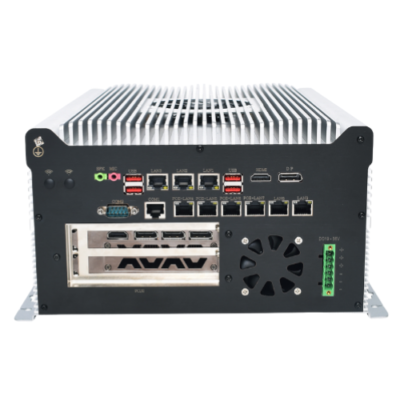

| I/O INTERFACE |
|
| COM |
1* RS232/RS485 (DB9, COM1);1*RS232/RS485 (RJ45, COM2) |
| Ethernet |
2* Intel® i210AT + 1* Intel® i219LM GbE LAN, support Wake-on-LAN, PXE1* Intel® i211 GbE LAN (LAN4-LAN7 support PoE, IEEE802.3af), optional M12 |
| USB |
4* USB3.2 Gen2(10Gbps), 4* USB3.0; 1* Internal USB2.0 header |
| Video |
1* DP, support 76804320@60Hz;1 HDMI, support 4096*2160@24Hz; |
| Audio |
On board ALC897, 7.1 + 2 Audio control, support MIC/ Line-out |
| SIM |
2*SIM Slot;M.2 B-Key support 4G/5G (or USB1);Minipcie support WIFI/BT/4G (or LAN1) |
| Power Supply |
DC 19-36V; 6-Pin DC green connection (5.08 pitch) |
| Other |
1* TPM (2*6 PIN) |
| Extended Capabilities |
|
| Additional Internal Interface |
1* M.2 3042/3052 B-key Slot with SIM slot (USB3.0, shared with USB1)1* M.2 2230 E-key Slot (PCIe+USB2.0, Support CNVio、WiFi+BT)1Full size Mini-PCIe Slot without SIM slot (PCIe+USB2.0 on motherboard, shared with USB2)1Full size Mini-PCIe Slot with SIM slot (PCIe + USB2.0 on daughterboard) |
| Extension |
COM, LAN, USB, CAN BUS, Wi-Fi, 4G |
| Environment |
|
| Operating Temperature |
-10 ~ 60°C |
| Storage Temperature |
-20 ~ 75 °C (-40~167°F) |
| Relative Humidity |
40°C @95%, non-condensing |
| Physical Characteristics |
|
| Dimensions |
290.3* 152.6* 324 mm (W* H* D) |
| Net Weight |
8.4 KG (without Integrated Graphics Card, accurate weight needs to refer to the final solution) |
| Regulation |
|
| EMC |
CE/FCC Class B, CCC |
| Safety |
CE-LVD, RoHS, CCC |
