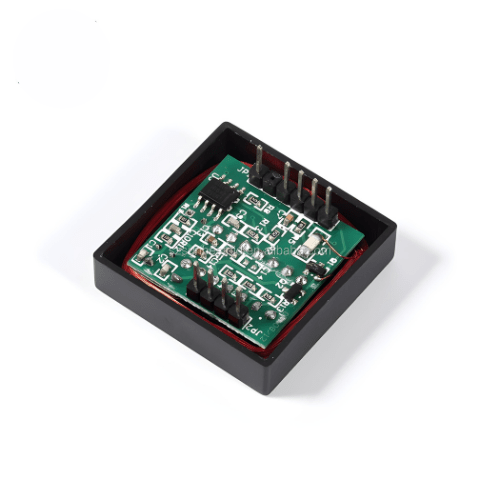

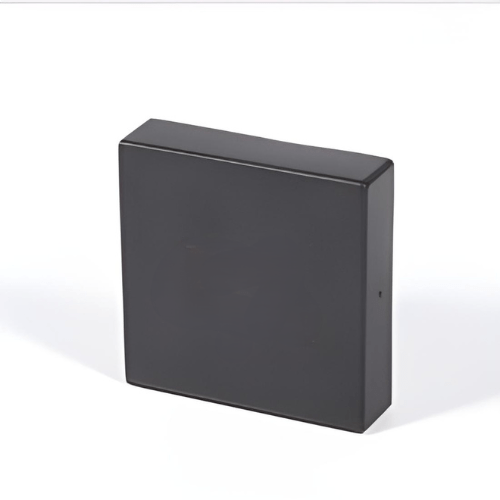

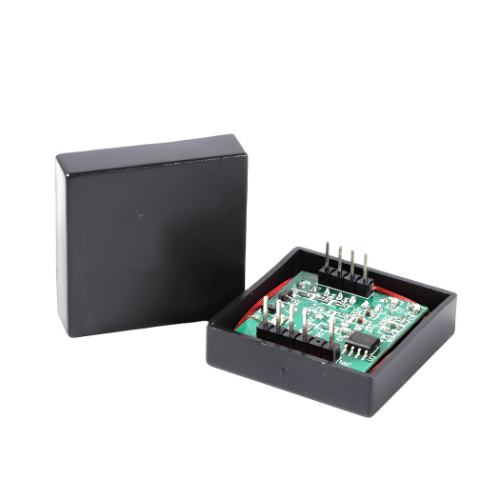

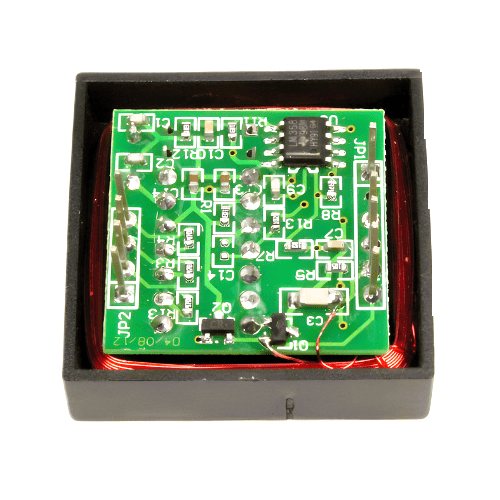

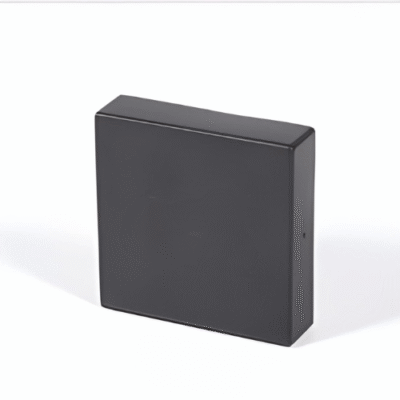

Compact RFID Reader 125 KHz ISO 14443A with Wiegand 26 & RS232 - Asset Track Pro
Compact RFID Reader 125 KHz ISO 14443A with Wiegand 26 & RS232 - Asset Track Pro - Image 2
Compact RFID Reader 125 KHz ISO 14443A with Wiegand 26 & RS232 - Asset Track Pro - Image 3
Compact RFID Reader 125 KHz ISO 14443A with Wiegand 26 & RS232 - Asset Track Pro - Image 4

Compact RFID Reader 125 KHz ISO 14443A with Wiegand 26 & RS232 – Asset Track Pro

RFID reader operating at 125 KHz with ISO 14443A protocol, featuring Wiegand 26 and RS232 outputs. Offers a reading distance, compact size, and efficient power use.

SKU: ATPLMOD-114 Category:

Description

Technical Specifications

Frequency 125 KHz
Protocol ISO 14443A
Reading Distance 100 mm
Card Format EM4100 or compatible chip
Interface Wiegand 26

RS 232
Output RS 232 and WG 26
Power Supply 5 V DC 35 mA
Range Of Power Supply +4.6 V to +5.4 V
Encoding Manchester 64-bit, modulus 64
Reading Distance 0.2625 ft to 0.3281 ft (8 cm to 10 cm)
Size 1.26 in X 1.26 in X 0.31 in (32 mm X 32 mm X 8 mm)
