Description
Overview

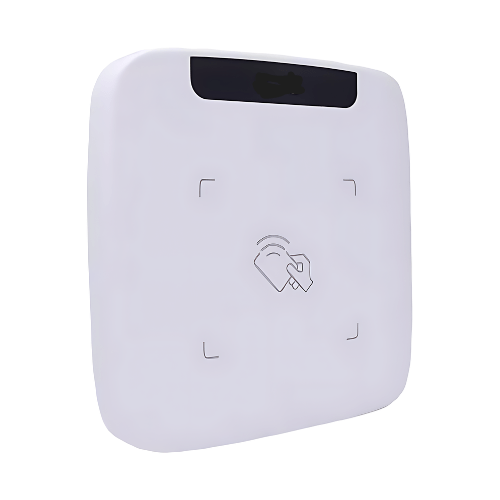

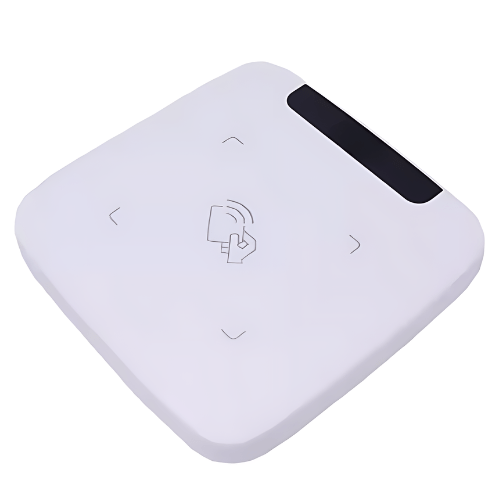

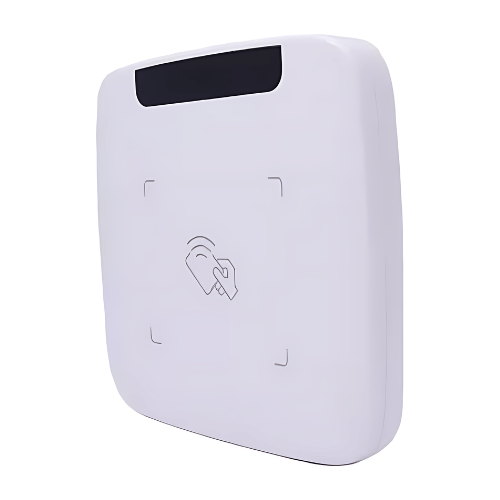

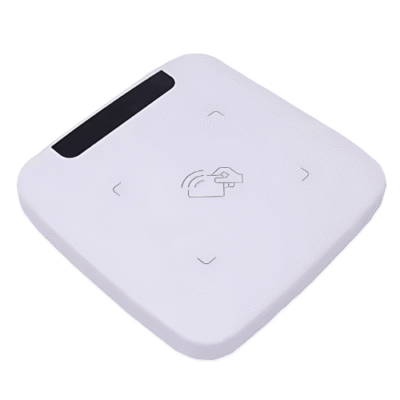

Asset Track Pro RFID Desktop UHF USB Short Range Writer Reader has a small size, very thin, easy-to-carry EPC global Gen2 (ISO 18000-6C), USB port, with a switch that can change USB into RS232, With QM100, cost-effective, cheap price, three light indicators, convenient for handle and read and write RFID card or tags fast speed and reading rate.
Technical Specifications
| Frequency | 860 MHz to 960 MHz |
| Protocol | ISO 18000-6C |
| Protocol | EPC Class 1 Gen 2 (ISO 18000-6C) |
| Output Power | 5 dBm to 30 dBm (± 1 dBm) adjustable |
| Interface | USB 2.0 or UART serial port (RS232), Baud rate 9600 bps to 115200 bps |
| Antenna | Built-in – 10 dBi PCB antenna |
| ASIC | QM100 |
| Read Rate | ≥ 50 tags per s |
| Reading Distance | 1.97 in to 19.69 in (5 cm to 50 cm) |
| Dimension | 4.33 in x 4.33 in x 0.67 in (110 mm x 110 mm x 17 mm) |
| Weight | 3.8 oz (108 g) |
