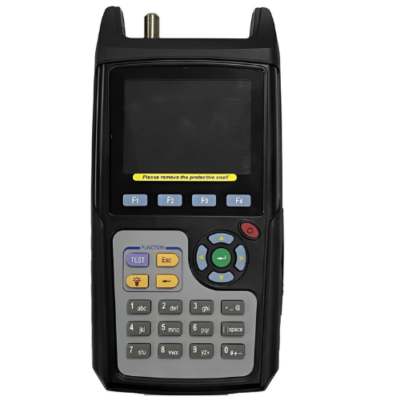

Comprehensive Cable Tester with Multi-Standard Compatibility - Asset Track Pro

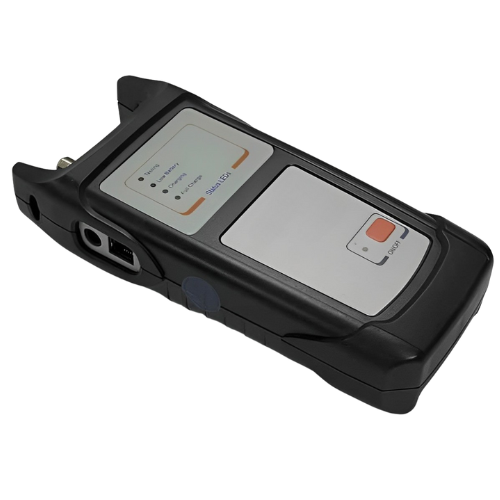

Comprehensive Cable Tester with Multi-Standard Compatibility - Asset Track Pro - Image 2

Comprehensive Cable Tester with Multi-Standard Compatibility – Asset Track Pro

Discover the Ethernet tester with UTP, coax, and RJ45 connectors, offering accurate length, BER test, and more for comprehensive network diagnostics.

SKU: ATPATEA-105 Category:

Description

Features

  • Contains a main unit and a remote unit
  • Multi connector: one RJ45 connector for UTP/STP data cable testing, one F connector for coax testing, one RJ11 connector for telephone cable testing and two banana jacks for 2-wires testing
  • Support International standard ISO/IEC 11801 and American standard TIA/EIA-568-B
  • One generator
  • Two additional functions: Ping and BER Test
  • Store at least 100 results
  • Toolbox software to analyze the results on PC



Technical Specifications

Length Range (UTP) 0 m to 176 m (0 ft to 577.4 ft)
Length Resolution 0.1 m (0.33 ft)
Length Accuracy ±1.5 m (±4.92 ft)
Length Range (Coax) 0 m to 200 m (0 ft to 656.17 ft)
Propagation Delay 0 ns to 850 ns
Propagation Delay Accuracy 1 ns ±7 ns
Delay Skew 0 ns to 100 ns
Delay Skew Resolution 1 ns
DC Resistance Accuracy 10 ±15 ns +2 Ω
RF Frequency 1 MHz to 250 MHz
NEXT, Return Loss, ELFEXT 1 to 31.25 MHz: 150 kHz, 31.25 MHz to 100 MHz: 250 kHz, 100 MHz to 250 MHz: 500 kHz
Insertion Loss (Frequency) 1 MHz to 250 MHz: 1 MHz
NEXT Range 0 dB to 70 dB
Insertion Loss Range 0 dB to 40 dB
Insertion Loss Accuracy ±2 dB (0.1 dB resolution)
Testing Interface RJ45, RJ11, F, Banana Jacks
Power Supply (Main Unit) 7.4 V / 2.4 AH Lithium battery
Power Supply (Remote Unit) 7.4 V / 1.1 AH Lithium battery
Main Unit Dimension 8.74 in x 4.25 in x 2.24 in (22.2 x 10.8 x 5.7 cm)
Remote Unit Dimension 7.24 in x 3.27 in x 1.73 in (18.4 x 8.3 x 4.4 cm)
Main Unit Weight 1.76 lb (0.8 kg)
Remote Unit Weight 0.88 lb (0.4 kg)
