Description
Technical Specifications

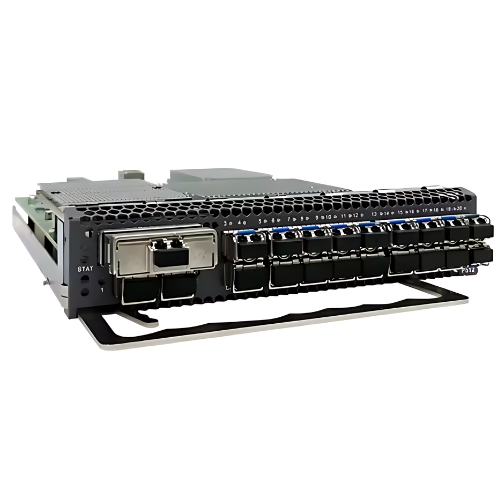

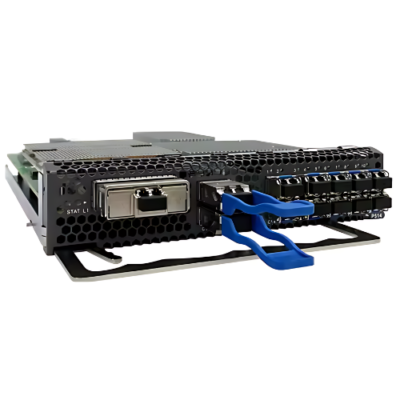

| Type | Optical transport equipment |
| Application | Telecommunication |
| Certification | ISO9001 |
| Wavelength | C-band 100 GHz |
| Access Service Type | 200 GE |
| Occupied Slot Number | Occupy 1 or 2 slots |
| WDM Technology | Support DWDM |
| Typical power consumption | 60 W |
| Line Side | Support 1 CFP2 DCO module hot-swap |
| OTN Function | Frame format and overhead handling using ITU-T G709 recommendations
ODUk (k=flex, 4, C2) layer supports PM and other functions OTUk (k=C2, C4) layer supports SM functions |
| Wavelength Adjustable | Range covers 191.35 THz to 196.1 THz
Support 50 GHz,75 GHz, 100 GHz adjustable |
| Time delay measurement | Support |
| Client Side | Support 20 SFP+ modules hot-pluggable |
| Support Services | 10GE, STM-64, 10GE WAN, OTU2S |
| LLDP | Support |
| Performance monitoring and alarm monitoring | Support OTN performance monitoring and alarm monitoring functions
Support optical module temperature, current, optical power monitoring, etc. Support Ethernet RMON monitoring Support Telemetry |
