Description
Features

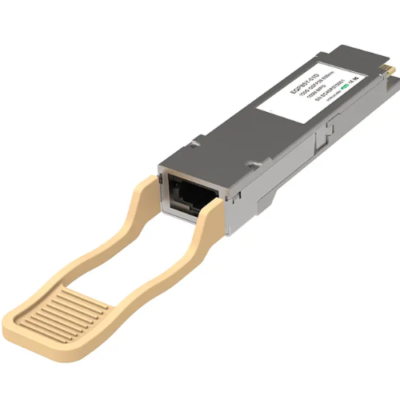

- Hot-pluggable QSFP28 form factor
- Full-duplex transceiver module
- 850nm VCSEL and PIN photo-detector arrays
- Internal CDR circuits for RX and TX
- Supports CDR bypass functionality
- Data rate up to 28.05Gbps per channel
- Compliant with 100GBASE-SR4 Ethernet
- Maximum link length of 100m on MMF
- Power consumption under 2W
- MPO12 receptacle
- RoHS 6 compliant (lead-free)
Technical Specifications
| Data Rate | 100 Gbps |
| Power Supply | 3.3 V |
| Transmit Power | -8.4~+2.4dBm |
| Wavelength | 850 nm |
| Connector Type | MPO or MTP |
| Connector | MPO |
| Distance | 328.08 ft (100 meters) |
| Fiber Type | Multi-mode |
| Operating Temperature | 32 °F to 158 °F (0 °C to 70 °C) |
| Dimensions | 28.35 in X 0.47 in X 0.71 in (7.2 cm x 1.2 cm x 1.8 cm) |
| Power Consumption | ≤ 2 W |
| Weight | 1.10 lb (0.5 kg) |
