Description
Overview

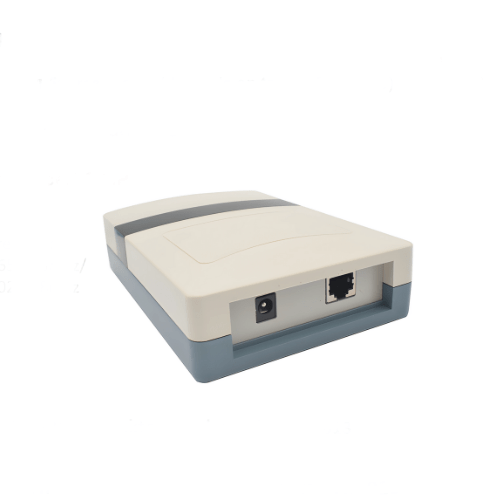

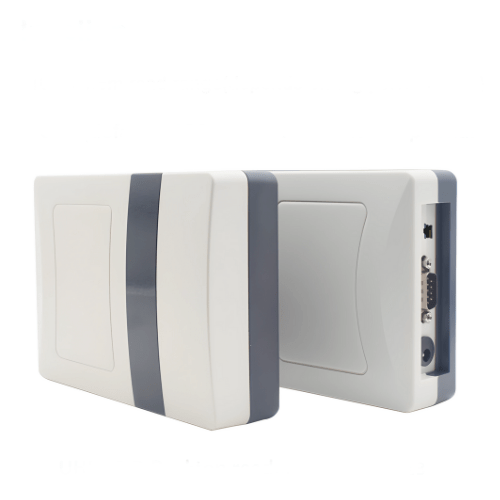

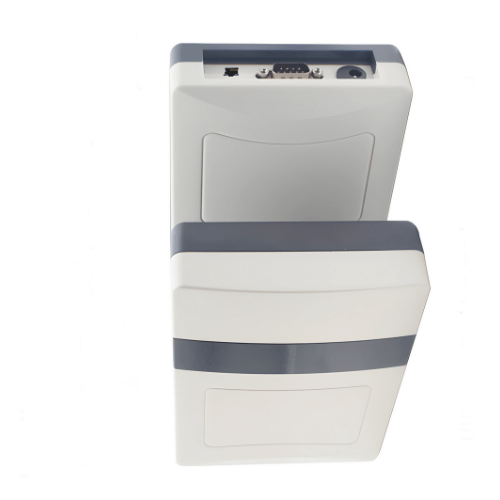

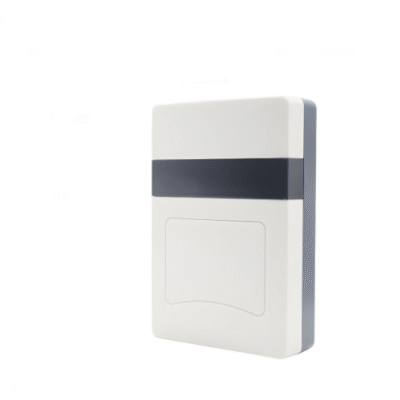

Asset Track Pro Tag Access Control Card Reader Desktop USB UHF RFID Reader Writer has simple connector: USB, RS232, TCP IP interface optional, TOP1-Quality desktop UHF RFID reader writer in China. With 902 MHz to 928 MHz (American frequency) and 865 MHz to 868 MHz (Europe frequency). Stable performance, provide free English SDK and free test tag sample. Short read range 0 in to 59.06 in (0 mm to 1500 mm).
Technical Specifications
| Frequency | 868 MHz to 868 MHz or 902 MHz to 928 MHz |
| Protocol | ISO 18000-6C |
| Communication interface | USB or RS232 or TCP IP |
| RFID Chips | PR 9200 |
| Tag Identification Speed | > 50 tags per s |
| Multi-Tag Identification Performance | > 50 tags |
| Heat-Dissipating Method | Air cooling |
| Operating Voltage | DC 12 V |
| Type | EPC gen2 passive USB desktop UHF RFID reader 3.94 in to 31.50 in (100 mm to 800 mm) |
| Read Distance | 3.94 in to 59.06 in (100 mm to 1500 mm) |
| Dimension | 4.33 in x 6.30 in x 1.77 in (110 mm x 160 mm x 45mm) |
| Weight | 7.05 oz (200 g) |
