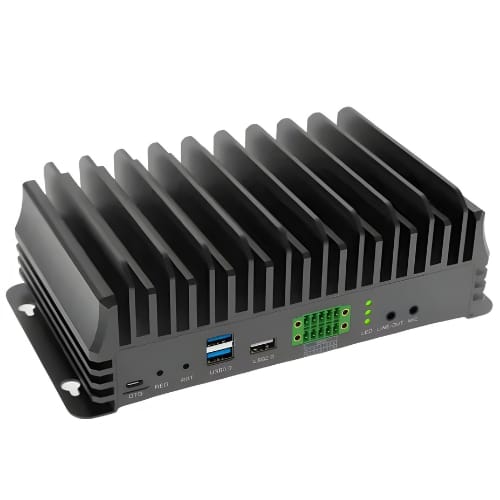

Edge AI Computing Box with 12V or 40W and LAN – Asset Track Pro

Edge AI Computing Box with 6-core ARM CPU, 16 GB LPDDR4, 21 TFLOPS GPU, 12V or 40W power, HDMI, USB, LAN, optional WIFI or 5G, and rugged design.

SKU: ATPOPE-201 Category:

Description

Technical Specifications

CPU 6-core Camel ARM v8.2 64-bit CPU, 1.9 GHz
GPU Volta, 384 CUDA cores and 48 Tensor cores, 1.1 GHz, 21 TFLOPS (INT8)
Encode 2 x 464 MP per second (HEVC), 2 x 4K at 30 (HEVC), 6 x 1080p at 60 (HEVC), 14 x 1080p at 30 (HEVC)
Decode 2 x 690 MP per second (HEVC), 2 x 4K at 60 (HEVC), 4 x 4K at 30 (HEVC), 12 x 1080p at 60 (HEVC), 32 x 1080p at 30 (HEVC), 16 x 1080p at 30 (H.264)
Memory 16 GB 128-bit LPDDR4, Bandwidth 59.7 GB per second, 1600 MHz
Extend 2 x Mini PCIe (USB single and PCIe single, either PCIe or SSD can be selected)
Display 1 x HDMI 2.0 (Type A)
I or O 2 x USB 3.0, 1 x USB 2.0, 1 x OTG, 1 x CAN, 1 x RS485, 1 x RS232, 8 x GPIOs
LED 1 x Green LED (Power indication), 2 x Green LED (Controlled by GPIO)
Button 1 x Reset, 1 x Recovery
Material Aluminium
Colour Black
MAX Power 23 W
Storage 16 GB eMMC + TF (optional) + M.2 NVMe SSD (optional)
Network 2 x Giga LAN (RJ45) + WiFi + 5G or 4G (optional)
Power Supply DC 12V or 40W + LAN PD
Radiator Fin, without fan
OS Ubuntu 18.04 (JP4.5 or JP4.6)
Operating Temperature 10°F to 140°F (-30°C to 60°C)
Size (L x W x H) 7.87 x 4.72 x 2.56 in (200 x 120 x 65 mm)
Weight 3.31 lb (1.5 kg)
