Description
Technical Specifications
| Memory | 8GB |
| Application | 64GB eMMC 5.1 flash + TF card |
| Network | 2 x Giga LAN (RJ45), 1 x WIFI (Optional), 1x 4G or 5G (Optional) |
| Expansion | 1 x M.2 2280, 2 x MiniPCIe, 1 x TF, 1 x SIM |
| COM | 1 x RS485 (default, compatible with RS422) |
| Material | Aluminum Shell |
| Color | Iron gray |
| Processor | N95: 4 Cores 4 Threads, 3.4 GHz turbo frequency, 6 MB L3 Cache, 15W TDP, Support AES-NI, 5388 CPU benchmark N100: 4 Cores 4 Threads, 3.4 GHz turbo frequency, 6 MB L3 cache, 6W TDP, Support AES-NI, 5552 CPU benchmark N200: 4 Cores 4 Threads, 3.7 GHz turbo frequency, 6 MB L3 cache, 6W TDP, Support AES-NI, 5161 CPU benchmark i3-N305: 8 Cores 8 Threads, 3.8 GHz turbo frequency, 6 MB L3 cache, 15W TDP, Support AES-NI, 10118 CPU benchmark |
| BIOS | AMI EFI BIOS |
| Memory | 1 x DDR5 4800 MHz SODIMM, up to 16 GB |
| Storage | 1 x M.2 NVMe |
| Display Chip | Integrated HD 600 Graphics Card |
| Display Port | 1 x HDMI, 1 x DP |

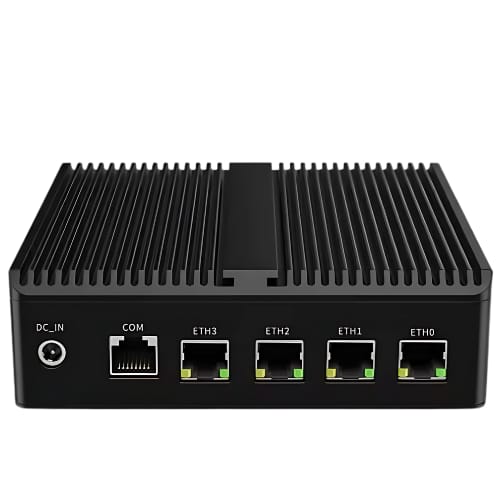

| Front I or O | 4 x 2.5G Ethernet port, 1 x Power Adapter, 1 x RJ45 COM |

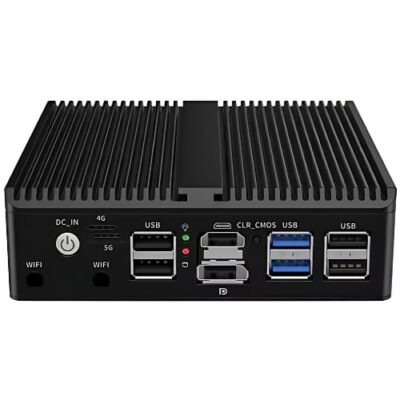

| Back I or O Interface | 2 x USB 3.0, 4 x USB 2.0, 1 x HDMI, 1 x DP, 1 x Power Button, 1 x Power HDD LED, 1 x CLR-CMOS, 1 x 4G SIM Card slot, 1 x 5G SIM Card slot |
| Expansion Slot | 1 x Mini PCIe (Support USB signal 3G or 4G communication module), 1 x M.2 2242 (Support 5G Communication) |
| Ethernet Port | 4 x i226 2.5 Gigabit Ethernet |
| Other Functions | Power-on boot, Scheduled boot, Wake-up on LAN, PXE boot, Watchdog |
| Power Supply | DC 12V to 4A 5.5 x 2.5 |
| OS Supported | Windows 10, Winserver 2019 or 2022, CentOS, Ubuntu, ESXi, pfSense, Debian |
| Environment Humidity | 5%RH to 90%RH, Non-condensing |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) (Commercial HDD) -4°F to 122°F (-20°C to 50°C) (Industrial SSD) |
| Size | 5.35 x 4.96 x 1.57 in (136 x 126 x 40 mm) |
| Weight | 2.20 lb (1 kg) |
