Description
Overview

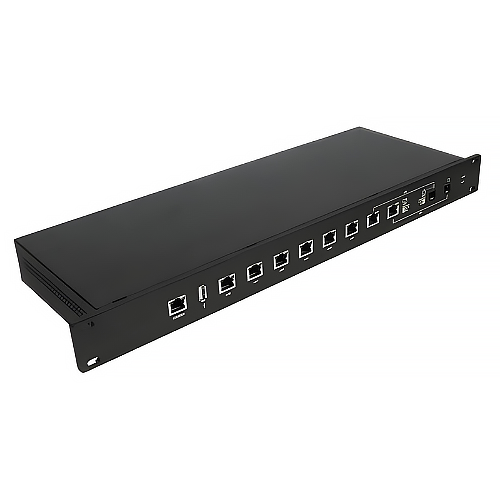

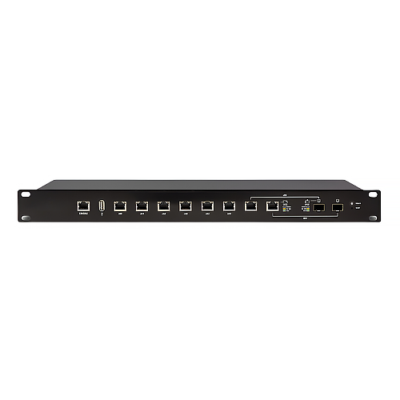

Asset Track Pro edge router pro with 8 gigabit ports combines carrier-class reliability with enterprise-level features in a compact and affordable unit. available in a rack-mountable form factor with eight functional ports, the edge router pro and 8-port edge router models are even faster, capable of routing up to 2 million packets per second.
Features
- Powerful routing Performance: The Edge Router PRO routes up to 2 million packets per second. Use its advanced features to run applications on the customizable open platform.
- Versatile Gigabit Connectivity: Provides six independent RJ45 Gigabit ports and two RJ45 or SFP combination Gigabit ports.
- Convenient Rack mount Design: The durable, 1 U-high metal chassis allows for convenient mounting in a standard-sized, 19”-wide rack.
- Centralized Management: The Edge Router PRO is supported and managed by UNMS (Ubiquiti Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered Edge MAX devices across multiple sites.
Technical Specifications
| Router type | Enterprise router |
| The port structure | Modularization |
| Wand area network interface | 6 |
| Lan area network interface | 2 |
| Other ports | 1 USB 2.0 port 1 RJ45 Console interface |
| Package forwarding rate | 64 byte packet forwarding rate: 2.4 Mpps 512 or more packet forwarding rate: 8 Gbps (line rate) |
| Firewall | Built-in firewall |
| Qos supports | Backing |
| VPN support | Backing |
| Network security | ACL, Firewall, RADIUS Authentication, PPPOE, DHCP, DNS, Static Routing, OSPF or RIP Dynamic Routing, Arp, 802.1q vlan, Logs, etc |
| Network management | Web-UI, CLI (console, SSH, Telnet), SNMP, NetFlow, LLDP, NTP, UBNT discovery protocol, etc |
| Processor | Dual 1GHz, MIPS64 |
| Product memory | DRAM memory: 2GB FLASH memory: 4GB |
| The supply voltage | AC 100 V to 240V |
| Power supply power | 60 W,24 V,2.5 A |
| Product size | 19.05 in x 6.45 in x 1.73 in (484 mm × 164 mm × 44mm) |
| Operating temperature | 14 oF to 113 oF (-10 oC to 45 oC) |
| Degrees c operating humidity | 10 % to 90 % Non Condensation |
| Processor | Dual 1 GHz, MIPS64 |
| Product Memory | DRAM memory 2 GB FLASH memory 4 GB |
| Supply Voltage | AC 240 V to 100 V |
| Supply Power | 60 W, 24 V, 2.5 A |
| Network | Wired LAN |
| Other Ports | 1 x USB 2.0 port 1 x RJ45 Console interface port |
| Network Security | ACL, Firewall, RADIUS Authentication, PPPOE, DHCP, DNS, Static Routing, OSPF or RIP Dynamic Routing, Arp, 802.1q vlan, Logs, etc. |
| Network Management | Web-UI, CLI (console, SSH, Telnet), SNMP, NetFlow, LLDP, NTP, UBNT discovery protocol, etc. |
| Environmental Humidity | 90 % to 10 % non-condensation |
| Operating Temperature | 14 °F to 113 °F (-10 °C to 45 °C) |
| Size | 19.05 in x 6.45 in x 1.73 in (48.4 cm x 16.4 cm x 4.4 cm) |
