| Structure |
Safety |
| Application |
General |
| Power |
Electric |
| Customized Support |
OEM, ODM, OBM |
| Temperature of Media |
High temperature, Low temperature, Medium temperature |
| Media |
Water |
| Type |

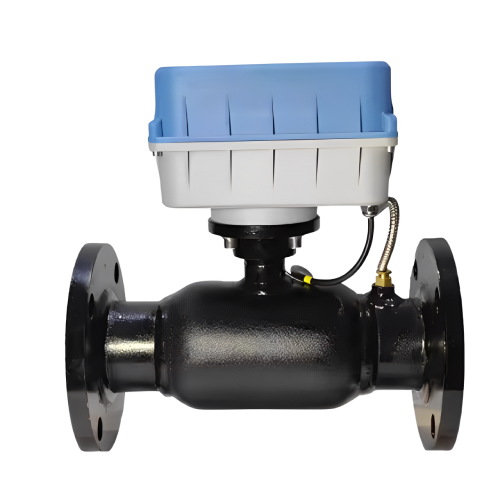

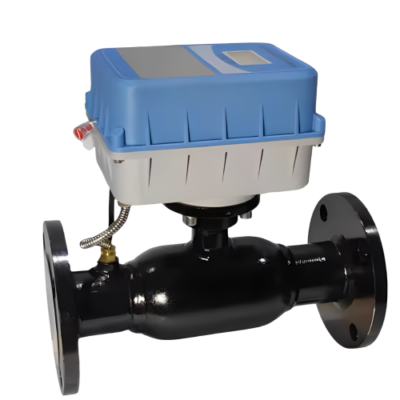

Ball valve |
| Usage |
Automation of valve |
| Material |
Carbon steel |
| Valve Core |
304 stainless steels |
| Working Medium |
Water oil steam |
| Working Pressure |
PN16 PN25 |
| Voltage |
DC 3.6 V, DC 24 V |
| Battery Capacity |
57000 mAh (customizable) |
| Standby Power |
50 µA |
| Switching Power |
1 W |
| Torque |
100 Nm |
| Communication |
M-BUS, NB-IOT, LORA, 4G, 0 V to 10 V, 4 mAH to 20 mAH |
| Operation Time |
2 min (customizable) |
| Drive Mode |
electric |
| Protection Grade |
IP67, IP68 |
| Actual Shell Material |
Nylon upper shell aluminum lower shell |
| Body Material |
Carbon steel (flange connection) |
| Working Pressure |
PN16, PN25 |
| Medium |
Water, hot water, steam |
| Working Temperature |
-4 °F to 302 °F (-20 °C to 150 °C) |
| Opening |
0° to 90° |
| Size |
½ in to 8 in (1.27 cm to 20.32 cm), DN15 to DN200 (Customized according to needs) |
