Description
Overview

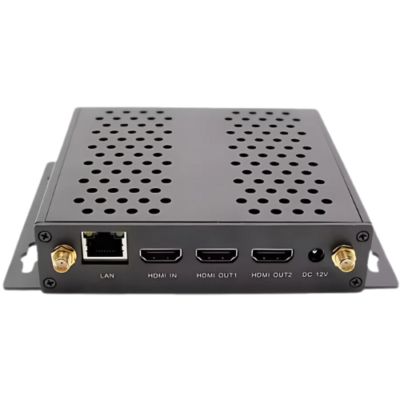

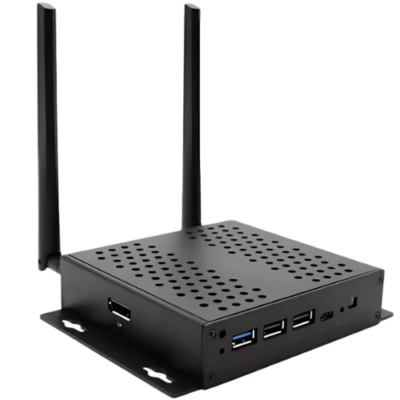

Asset Track Pro Embedded Mini PC isusing RK 3588 chipset, whichis8nmmadeand 8-core CPU, 4 cores Cortex A76 and 4 cores of Cortex A55. With its HDMI2.1output, the max video output resolution is up to 8K 60 Hz (7680 x 4320 at 60 Hz). Asset Track Pro Embedded Mini PC is internally integrated with6.0 tops NPU and can meet the edge computing needs of most terminal devices. This device also has diverse interfaces, which can reach 4-screen displaying at the same time: 8K screen + 4Kscreen+2Kscreen+1Kscreen, orwecando4Kscreen+4kscreen+4Kscreen+1Kscreen at the same time. With Gigabit network ports, 4 x 16-bit channel DDR, maxsupportisupto32GB.
Technical Specifications
| Operating System | Debian 11, Android 12, Ubuntu 20.04, |
| CPU | RK3588, Octa-core (Quad-core Cortex A76 and quad- core Cortex A55) |
| CPU Frequency | Quad-core Cortex A76 at 2.4 GHz Quad-core Cortex A55 at 1.8 GHz |
| GPU | Mali-G610 GPU, OpenGL ES 1.1 or 2.0 or 3.2, OpenCL 2.2, Vulkan 1.2 Embedded high-performance 2D acceleration hardware 8K 10-bit decoder, 8K encoder |
| NPU | 6.0 TOPS NPU |
| DDR | LPDDR4X (4G, 8G, 16G optional) |
| Internal Storage | Support eMMC 5.1, SDIO 3.0 (32 GB, 64 GB, 128 GB optional) |
| Display Output | HDMI 2.1, max output 8K 60 Hz, HDCP 2.3 DP 1.4, max output 8K 30 Hz, HDCP 2.3 |
| HDMI Input | Max input 4K 60 Hz |
| HDMI Output | HDMI 2.1 (7680 x 4320 at 60 Hz) |
| Ethernet | G-LAN network 1000 Mbps |
| WIFI | WIFI 6, IEEE 802.11 a or B or G or N or AC or Ax MIMO |
| Clock | Support RTC clock |
| USB | USB 3.0, USB 2.0, Type-C |
| SATA | SATA 3.0 (7 pin) |
| Industrial Port | Serial port, GPIO |
| DC Power | 12V 3Ah (DC port 5.5 x 2.0) |
| Specification | 4.33 in x 4.33 in (110 mm x 110 mm) |
| Package Size | 11.02 in x 8.66 in x 3.94 in (280 mm x 220 mm x 100 mm) |
| Package Gross Weight | 4.41lbs (2 kg) |
