Description
Overview

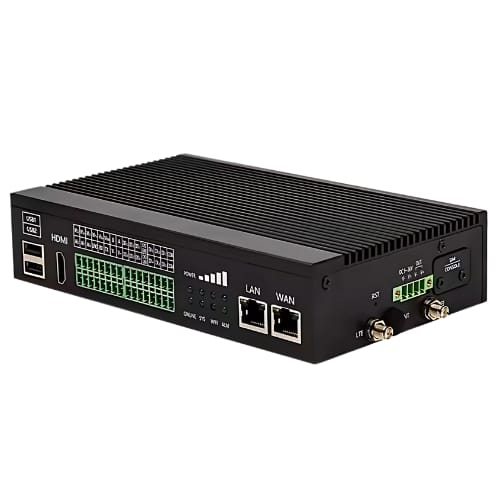

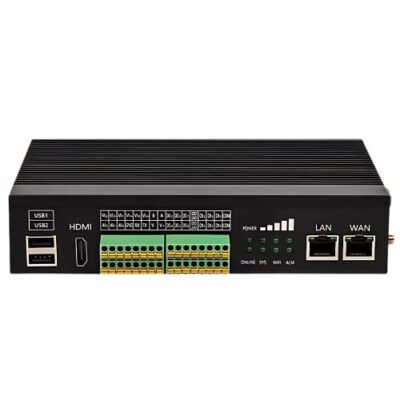

Asset Track Pro Ethernet Industrial IoT is an industrial edge computing designed for IoT applications powered by Raspberry Pi CM4. Expanded I or O ports for industrial needs, diverse connectivity options, and true IPC-grade enclosure. This device is perfect for IoT Gateway, data acquisition, industrial controller, and edge computing applications
Features
- 2 x GBE
- 4G LTE, 3G, 2G or NB-IoT
- Lora WAN or WIFI Halow optional
- Industrial-grade DI, DO, AI or CAN-bus (optional)
- RS232 or RS485
- Hardware Watchdog, Network Failover
Technical Specifications
| CPU | RPI CM4, Quad-core A72 (ARM v8) at 1.5 GHz |
| Memory | 1GB or 2GB or 4GB or 8GB options LPDDR4 |
| FLASH | 8GB or 16GB or 32GB options eMMC |
| Ethernet | 2x Gigabit Ethernet (1-WAN or 1-LAN or 2-LAN Configurable) |
| Cellular | 1x mPCIe for 4G LTE, 3G, 2G, NB-IoT, CAT-M1 cellular modules |
| Wi-Fi | Dual Band 2.4GHz and 5GHz + Bluetooth 5.0 |
| LoRaWAN | 1x mPCIe slot for LoRaWAN modules, compatible with Semtech SX1301 or SX1302 |
| WiFi HaLow (802.11ah WiFi) | Reserved mount points for SX-NEWAH |
| GPS | Cellular Module built-in supported (Optional) |
| Serial Ports | Isolated RS-232 x 1, RS-485 x 1 |
| I or O | 6-channel digital input DI (0 to 24VDC, Configurable Status or Count mode) 3-channel Analog input AI (0 to 10VDC, 4-20mA, 18-bit resolution) 6-channel digital or pulse output DO with overvoltage protection (0.60V, Max. power efficiency: 500 mA) |
| USB | USB 2.0 x 2 for peripherals, USB-C x 1 for debug Console |
| HDMI | HDMI 2.0 x 1 (Up to 4kp 60 video and audio output) |
| Power Supply | Wide Range Voltages 9V to 36V DC or 1A, recommended 24V or 1.5A |
| Enclosure | Full Aluminum, IP30, DIN-rail |
| Watchdog | Standalone Hardware Watchdog |
| OS | ElastOS (OpenWRT based), Raspbian with WebUI |
| Operating Temperature | -13°F to 158°F (-25°C to 70°C) |
| Size | 7.36 x 4.41 x 1.65 in (187 x 112 x 42 mm) |
| Weight | 27.56 oz (780 g) |
