Description
Features
- UT1003AW motherboard, Core Ultra-U or H processor
- 2xDDR5SO-DIMM, TPM 2.0optional
- 1xTYPE-C (with DP supported)
- 3x M.2 (SSD or WIFI or 4G or 5G)
- DC 9V to 36V
- Double-sided aluminum profile is fan-less in design
Technical Specifications
| Processor | Core Ultra-U or H series processor Ultra-125UorUltra-155UorUltra-125HorUltra-155HorUltra-185H |
| RAM | 2xDDR5SO-DIMM with a maximum of96GB |
| Operating System | Windows 10, Windows11, Linux |
| Storage | 1 x TYPE-C (with DP supported), 1 x DP, 1 x H-D, and EDP or LVDS optional |
| Front Panel Interface | 3xDB9COM(RS232) 1x9PINPhoenixterminal (8channelsGPIOandground) xH-DMI interface, support 4K1xDP interface, support4K xRJ45port (1xi226-V,1xi226-LM, AMT support) 4xUSB (3xUSB3.0,1xUSB2.0), 1xTYPE-C (support4K) 1×2-in-1audio,1xDC (5525) interface with thread |

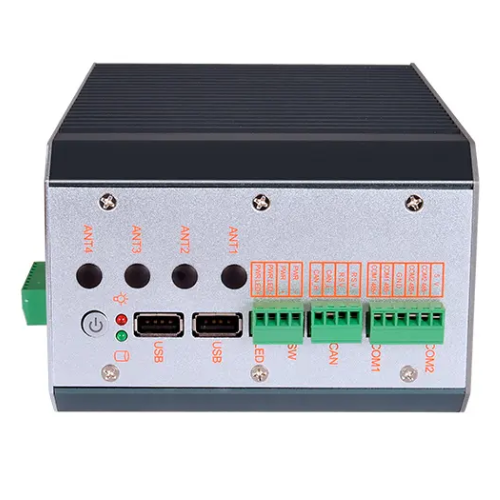

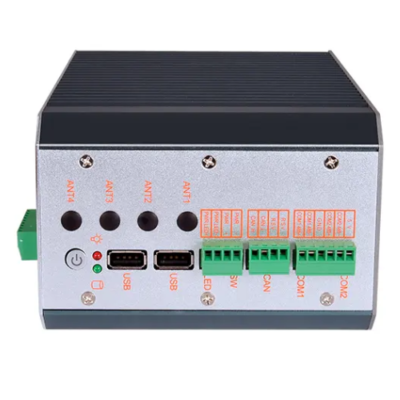

| Side Panel Interface | xOnandOffmachinebutton,1xHDDLED,1xPOWERLED xUSB2.0, 1×4 PIN Phoenix terminal (CAN port), 1×4 PIN Phoenix terminal (remote power switch and LED) 1x6PINPhoenixterminal (2xRS485), 4xANT (antenna hole) |
| Expand Functions | TPM2.0is optional, default No 1xM.2M-Key2280(PCIe3.0x4orSATA3.0 protocol) 1x(6.35cm)2.5-inchSATAharddrive 1xM.2KEY-E (PCIe + USB WIFI module) |
| 1xM.2KEY-B (PCIe+USB3.0,4Gor 5Gmodule) 1xSIMcardslot |
|
| Power Supply | DC 9V to36 V |
| Installation Method | Optional wall-mounted installation or DIN-Rail installation |
| Material | Sand blasting and oxidation of aluminum profiles |
| Operating Humidity | 5%RH to 90%RH |
| Operating Temperature | -4°Fto140°F (-20°C to 60°C) |
| Storage Humidity | 5%RHto90%RH |
| Storage Temperature | -40°Fto185°F (-40°Cto85°C) |
| Size (W x H x D) | 3.39inx8.66inx5.08in (86mmx220mmx129mm) |
| Weight | 5.51lb (2.5kg) |
