Description
Technical Specifications
| CPU | Core i5 4200U, Base Frequency: 1.6 GHz, Turbo Frequency: 2.6 GHz
Core i5 6300U, Base Frequency: 2.4 GHz, Turbo Frequency: 3.0 GHz Core i5 1135G7, Base Frequency: 2.4 GHz, Turbo Frequency: 4.2 GHz |
| RAM | Core i5 4200U: 2 x DDR3, max 16 GB
Core i5 6300U or 1135G7: 2 x DDR4, max 32 GB |
| Storage | 1 x MSATA
1 x SATA (6.35 cm) (2.5 in) SSD or HDD |
| Video Support | 1 x VGA support 1920 x 1080 at 60 HZ
1 x HD-MI support 4096 x 2160 at 24 HZ |
| Expansion | 1 x MINI PCIE slot, support WIFI or Bluetooth
1 x MINI PCIE slot, support 3G or 4G or WIFI module 8 x GPIO |
| Network | 2 x INTEL I225V 2.5G NIC, support Wake-on LAN and NIC Boot |

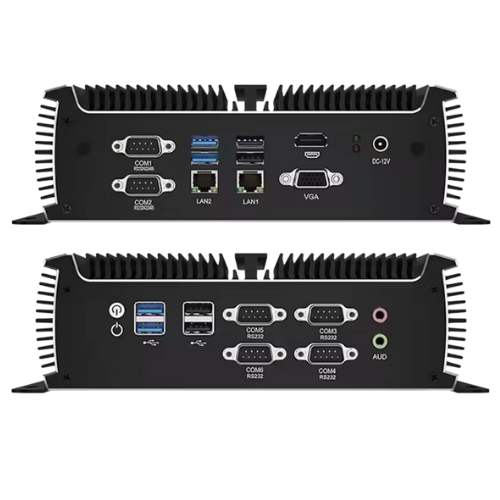

| Interface | 4 x USB 3.0
4 x USB 2.0 1 x VGA 1 x HD-MI 6 x DB9 RS232 (COM1 to COM2: can be set to RS232 or RS422 or RS485) 1 x Power Button 1 x SPK 1 x MIC 1 x DC 12V |
| OS | Windows 10, Windows 11, LINUX |
| Power | 12V6A DC IN |
| Material | Aluminum Alloy |
| Humidity | 5% RH to 95% RH (non-condensing) |
| Temperature | Work environment: -4°F to 149°F (-20°C to 65°C)
Storage environment: -22°F to 158°F (-30°C to 70°C) |
| Dimensions | 9.44 in x 5.90 in x 2.71 in
(240 mm x 150 mm x 69 mm) |
| Weight | 4.40 lbs (2 kg) |
