Description
Overview

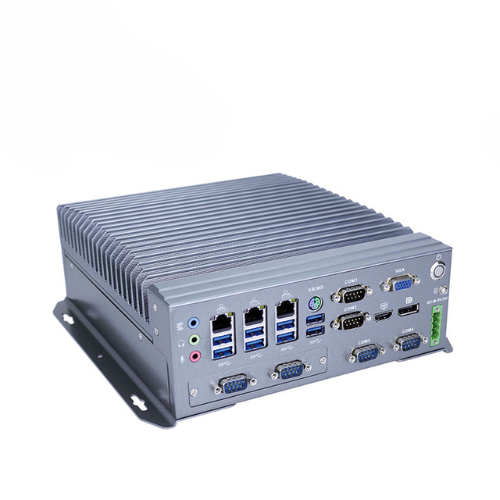

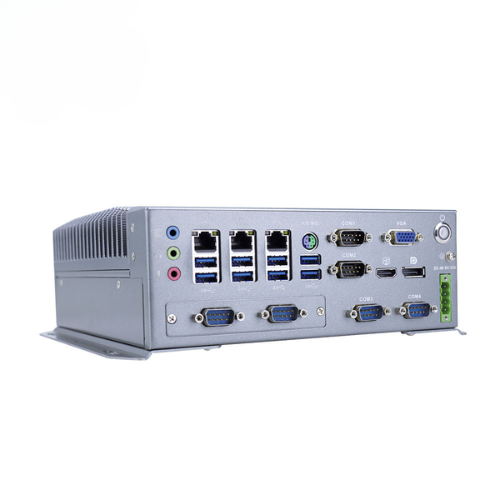

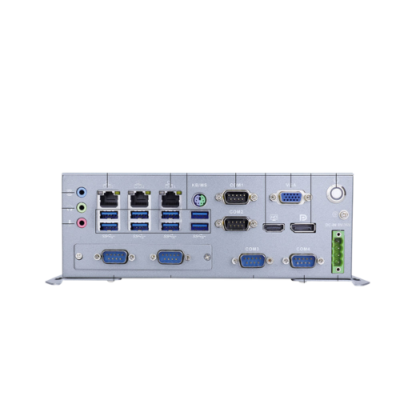

Asset Track Pro’s Fanless vPro Industrial Computer IPC IBOX708C for Automation is designed to deliver outstanding performance in demanding industrial environments, supported by 6th gen Core i3/i5/i7 CPU options. This industrial computer features 2x Intel I211-AT 1000M LAN, 8x USB 3.0 ports, and support for 1x HD, 1x VGA, and 1x DPD display ports for seamless connectivity. With a wide voltage range of 9-36V DC, the IBOX708C ensures stable power supply in various industrial settings. The product supports 1x mSATA and 2x 2.5″ SSD/HDD slots, allowing users to customize storage options according to their specific needs. Fanless vPro Industrial Computer IPC IBOX708C for Automation is compatible with both Windows 7/8/10 and Linux OS, making it an ideal choice for users who require flexibility in their operating system.
Technical Specifications
| Material | High-quality all aluminum, surface anodic oxidation |
| Color | Titanium gray (Color can be customized) |
| CPU (Optional) | Intel Core i3 6100T (dual core, 4 threads, 3.2 GHz)
Intel Core i5 6500T (dual core, 4 threads, 2.5 GHz, MaxTurbo 3.1 GHz) |
| RAM | Support 2xDDR4 1866/2133MHz SODIMM RAM Slot, Max 32GB |
| Storage | Support 1xMSATA, 22.5″ HDD (support RAID0/1) |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel HD Graphics 530 |
| Display Port | 1xVGA, 1xHD, 1xDP (Support synchronous and asynchronous dual display) |
| I/O | 8USB 3.0, 2Intel 1000M LAN, 1VGA, 1HD, 1DP, 1Mic, 1Audio, 6COM (RS232/422/485 optional), 1DC, 13PIN Power supply Phoenix terminal |
| Expansion Slot | Support 1*MINI PCIE slot (Support WIFI/3G/4G), embedded SIM slot Support 1*MINI PCIE Slot (Support MSATA/3G/4G)，embedded SIM slotOptional Port: 16Pin GPIO, 4*USB2.0 (standard version without this port) |
| Network | 2Intel i211-AT 1000M LAN, 1Intel i219-LM 1000M LAN (support Vpro) |
| Other Functions | Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog (0–255 level) |
| Power Supply | Support DC 9 to 36V wide voltage, Support positive and negative connection reverse protection |
| Application | Industrial Automation, Medical, Data Acquisition, Motion Control, Vehicle Application etc. |
| Work Temp | 32°F to 122°F (0°C to +50°C) (Commercial HDD), -4°F to 140°F (-20°C to +60°C) (Industrial SSD), Surface air flow |
| Work Humidity | 0% to 95% non-condensing |
| Dimensions | 8.27 in × 9.45 in × 3.29 in (210 mm x 240 mm x 83.5 mm) |
| Net Weight | 8.82 lb (4 kg) |
