| Use |

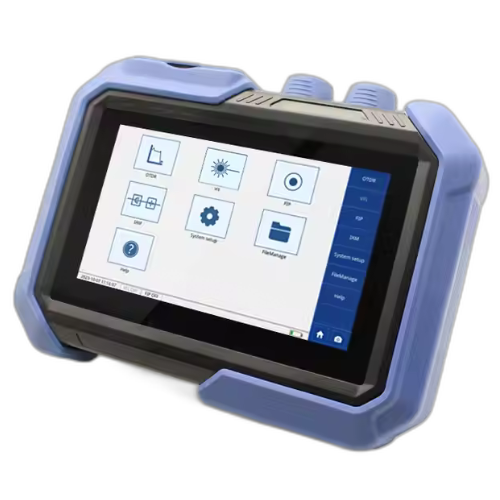

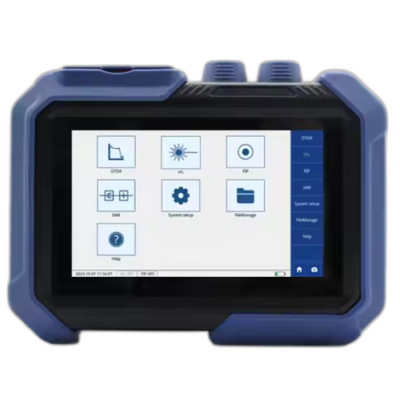

Fiber Optic Testing and Troubleshooting |
| Battery |
Large-capacity lithium polymer, extended working hours |
| Storage |
Includes memory card and SD card for large trace storage |
| Protective Design |
Durable, dustproof, shockproof carrying case |
| Wavelengths |
850/1300 nm (multimode), 1310/1550 nm (single-mode) |
| Dynamic Range |
20 dB to 45 dB |
| Loss Threshold |
0.05 dB |
| Event Dead Zone |
≤ 3.28 ft (1 m) |
| Attenuation Dead Zone |
≤ 13.12 ft (4 m) |
| Optical Interface |
FC/UPC (standard); FC/SC optional; UPC/APC optional |
| Testing Distance |
0.19 to 111.85 mi (0.3 to 180 km) |
| Touchscreen |
7-inch display, easy operation |
| Visible Fault Locator (VFL) |
Built-in, 650 nm, maximum testing distance of 1.86 mi (3 km) |
| Dimension |
6.97 in x 9.21 in x 2.60 in (17.7 cm x 23.4 cm x 6.6 cm) |
| Operating Temperature |
14°F to 122°F (-10°C to 50°C) |
| Weight |
2.87 lbs (1.3 kg) |
