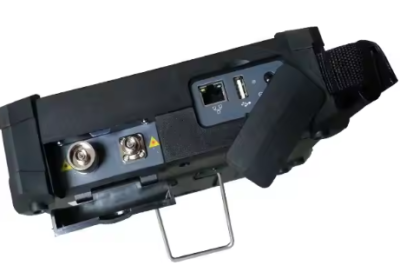

| Optical Connector |
FC/SC/ST (universal connector) |
| Battery |
NimH Smart Charge Battery |
| Continuous Working Time * |
>10 hours (From Bell core TR-NWT-001138) |
| Pulse Width |
10 ns,30 ns,50 ns,100 ns, 300 ns,1.0 ms, 2.5 ms,10 ms |
| Event Dead Zone(m) |
8.20 ft (2.5 m) |
| Attenuation Dead Zone(m) |
14 |
| Distance Range (Km) |
0.31 mi to 74.58 mi (0.5 km to 120 km) |
| Distance Measurement Accuracy |
± 3.28 ft (1 m) + sample space + measurement distance × 0.005%) |
| Linearity |
±0.05 dB/ dB |
| Memory capacity |
1000 |
| Fiber Type |
SMF |
| Display |
3.5 in LCD |
| Dimensions |
9.05 in x 4.72 in x 1.35 in (23 cm × 12 cm × 6 cm) |
| Weight |
1.98 lb. (0.9 Kg) |
