| Item Type |

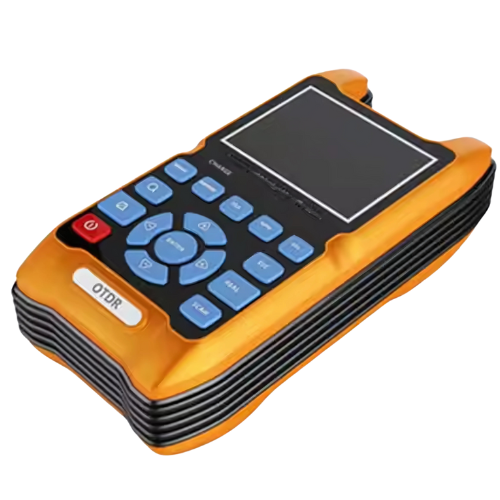

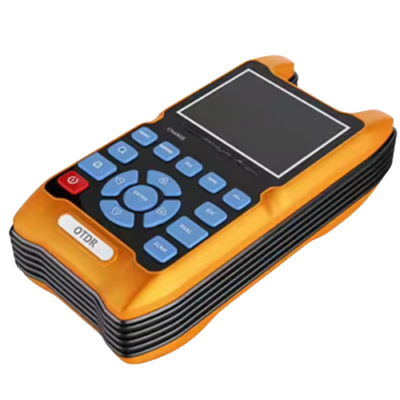

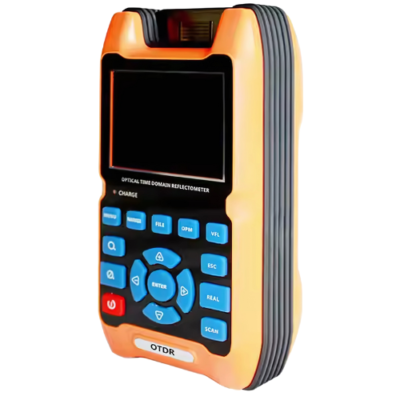

Optical time domain reflectometer |
| Material |
ABS |
| Dynamic Range |
32 dB/30 dB (100 kilometers) |
| Wavelength |
429 ft ± 6.56 ft(131 ± 2 cm) / 508 ft 6.56 ft (155 cm ± 2 cm) |
| Event Dead Zone |
Attenuation dead zone |
| Pulse Width |
10 ns, 25 ns, 50 ns, 100 ns, 250 ns, 500 ns, 1 us, 2.5 us, 5 us |
| Distance Uncertainty |
± 3.28 ft (1.0 m) ± 0.005% × test distance ± resolution) |
| Linearity |
±0.05 dB/dB |
| Loss Resolution |
0.001 dB |
| Distance Resolution |
Approx. 3.3 ft (1 meter) |
| Interface |
1 FC |
| VFL |
1 mW |
| Data Storage |
> 20,000 traces (Standard 4 GB memory card) |
| Display |
3.5-inch TFT color LCD monitor |
| Minimum Ranging Accuracy |
Approx. 0.3 ft (0.1 meter) |
| USB Interfaces |
2 USB ports |
| Battery |
Built-in rechargeable lithium battery, 3000 mAh |
| Charging Time |
2.5 hours |
| Working Time |
Standby: >15 hours, Measurement: >8 hours |
| Dimensions (Device) |
Approx. 3.9 x 2.6 x 7.9 in (10 cm x 6.5 cm x 20 cm) |
