| Processor |
LGA1700 Intel 12th and 13th i3 to i5 to i7 to i9 or Pentium or Celeron CPU |
| Power Supply |
ATX 24+8 Pin power supply, above 300W |
| Bridge Chip |
Optional H610 or H670 or Q670 |
| Memory |
2 x DDR4 SO to DIMM, up to 64GB |
| Storage |
1 x M.2 M to Key 2280,4 x SATA3.0,1 x CF card |
| LAN |
6 x Intel Lan Port I211 or I210 chipset, 4 x I350 SFP Ports |
| Front Panel Interface |

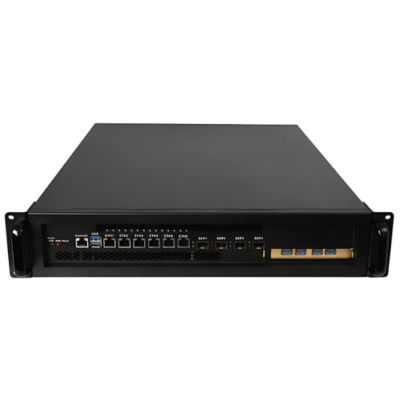

6 x Lan,1 x RJ45 RS232,2 x USB 3.0,1 x Switch button |
| Motherboard Expansion |
TPM2.0 (optional); 1xM.2 E to Key; 1xM.2 B to Key; 1xmicro SIM card slot |
| Humidity |
5% to 90% |
| Operation System |
Windows10, Windows11, Linux |
| Storage Temperature |
-40°F to 185°F (-40 °C to +85 °C) |
| Working Temperature |
-4 °F to 140 °F (20 °C to +60 °C) |
| Size |
19.13 in x 20.67 in x 3.50 in (48.6 cm x 52.5 cm x 8.9 cm) |
