Description
Overview

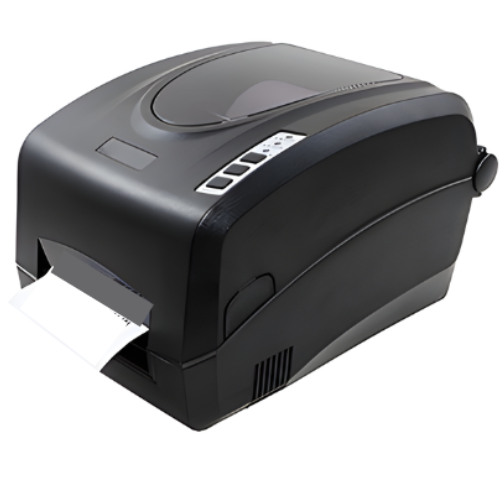

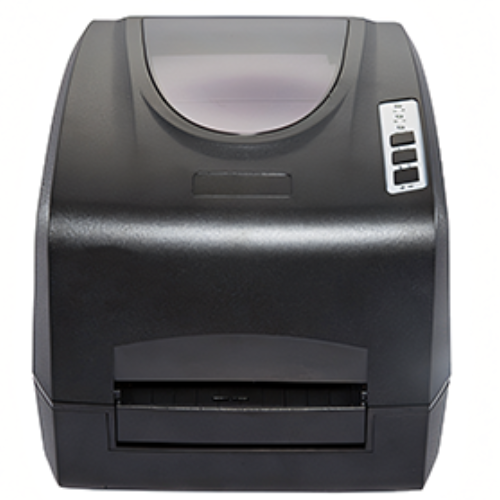

This Asset Track Pro Flexible RFID Reader Label Printer has 200 dpi of resolution, max printing width 2.8, max printing length 11,8, memory 8 MB Flash, 16 MB RAM
Features
- Small in appearance, powerful in function
- Strong compatibility, supporting flexible anti-metal tags
- Fastest printing speed of 6 inches per second
- Support ISO18000-6C protocol electronic tags
- Tag reading, writing data, printing can be combined freely
- Equipped with self-developed full-featured RF read-write printing software
Technical Specifications
| Frequency | 902 MHz to 928 MHz |
| Protocol | ISO18000-6C |
| Printing Method | Thermal or thermal transfer printing |
| RFID Function | Integrated high-performance UHF RFID reader/encoder, supporting tags compatible with UHF EPC Gen 2/ISO 18000-6C. 1. Supports working modes of printing while reading and writing data, printing only, or reading and writing data only; 2. Supports reading TID, EPC, and TID+EPC data from tags; 3. Supports bidirectional communication between USB and network, allowing real-time feedback on printer status. |
| Memory | 8 MB Flash ROM, 16 MB SDRAM |
| Barcode | Code 39, Code 93, Code 128, Codabar, EAN-8/13/128, Interleaved 2 of 5, UCC-128, UPC A/E 2 and 5 add-on, and other 1D bar codes; Datamatrix, MaxiCode, PDF417, QR, and other 2D bar codes |
| RFID Function | Integrated high-performance UHF RFID reader/encoder, supporting tags compatible with UHF EPC Gen 2/ISO 18000-6C.
Supports working modes of printing while reading and writing data, printing only, or reading and writing data only; 2. Supports reading TID, EPC, and TID+EPC data from tags; 3. Supports bidirectional communication between USB and network, allowing real-time feedback on printer status. |
| Label Thickness | 0.002 in to 0.06 in (0.06 mm to 1.5 mm), including backing paper thickness, supporting flexible anti-metal tags |
| Interface Type | Usb rs-232 rj45 |
| Paper Detection Method | Dual sensors for reflection and transmission |
| Black Print Speed | 6 IPS |
| Printing Speed | 6 IPS (152.4mm/s) |
| Maximum Printing Width | 4.15 in (105.6 mm) |
| Maximum Printing Length | 78.7 in (2000mm) |
| Maximum Paper Size | 78.7 in (2000 mm) x 4.2 in (105.6 mm) |
| Maximum Resolution | 300 dpi |
| Dimensions | 8.19 in x 12.20 in x 7,68 in (208 mm x 310 mm x 195 mm) |
| Weight | 5.9 lbs (2.62 KGS) |
