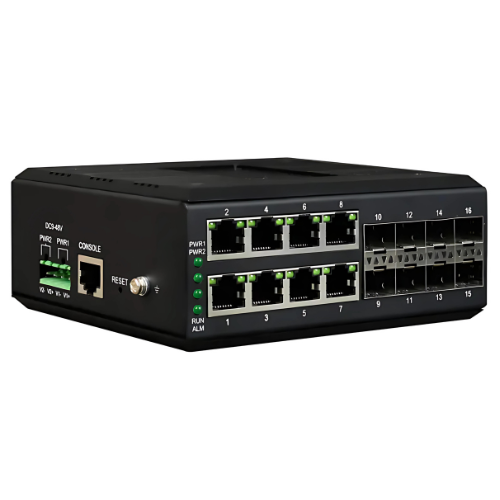

Gigabit Ethernet Network Switch with 8 RJ45 And 8 SFP Ports - Asset Track Pro

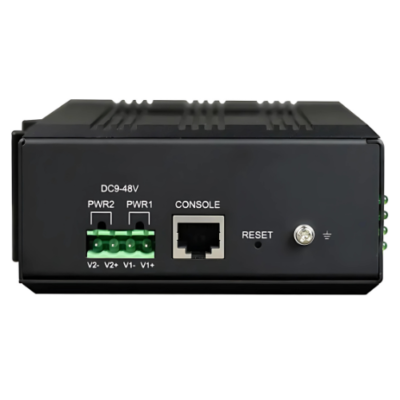

Gigabit Ethernet Network Switch with 8 RJ45 And 8 SFP Ports - Asset Track Pro - Image 2

Gigabit Ethernet Network Switch with 8 RJ45 And 8 SFP Ports – Asset Track Pro

High-performance switch with 8 RJ45 and 8 SFP ports, 10K max frame length, 52 Gbps backplane. Supports IEEE protocols and operates in harsh conditions.

SKU: Asset Track Pro -EWF-193 Category:

Description

Features

  • All-aluminium alloy shell, good heat dissipation characteristics, gold oxide oxidation process, IP40 protection level
  • Aluminium alloy industrial guide rail design, designed for harsh industrial environments
  • Support 8 Gigabit ethernet ports and 8 Gigabit SFP optical ports
  • Each ethernet port or optical port supports the standard ERPS ring network protocol, and the self-healing time is less than 20ms
  • Support port bandwidth limitation, port flow control, broadcast storm suppression
  • Support Web, CLI, Telnet management functions
  • Power down alarm, loop alarm
  • Provide Console debugging
  • Can support POE (POE+) equipment



Technical Specifications

Supported Protocol IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak
Transmission Rate 10 Mbps or 100 Mbps or 1000 Mbps
Communication Mode Full-Duplex and Half-Duplex
Switch Capacity 52 G
Maximum Frame Length 10K
Port Number 8 x 10 or 100 or 1000M RJ45 Ethernet ports, 8 x 100M or 1000M SFP optical ports, and 1 x Console port
VLAN Address Table 4K
MAC Address Table 8K
Cache 4Mbits
Function LACP, QoS, SNMP, Stackable, VLAN Support
Backplane Bandwidth 52Gbit
Filtering and Forwarding Rates 10Mbps：14880pps
100Mbps：148800pps
1000Mbps：1488000pps
Humidity 0% to 90% non to condensing
MTBF > 100,000 hours
Power Supply DC 9 to 48 V or AC 9 to 48 V
Power Dissipation Max 15W
Working Temperature 104 ⁰F to 185 ⁰F (40 ⁰C to 85 ⁰C)
Product Size 5.2362 in x 4.7244 in x 1.9685 in (13.3 cm x 12.0 cm x 5.0 cm)
Weight 2.094 lbs. (0.95 kg)
