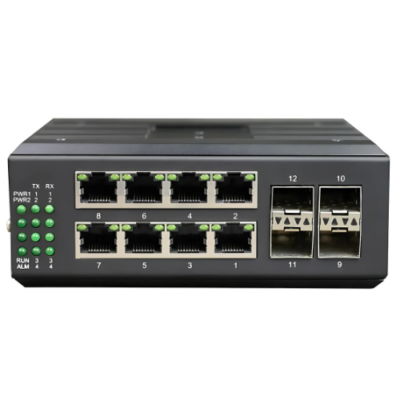

Gigabit Ethernet Switch with 8 Gigabit Ports and 4 SFP Ports - Asset Track Pro

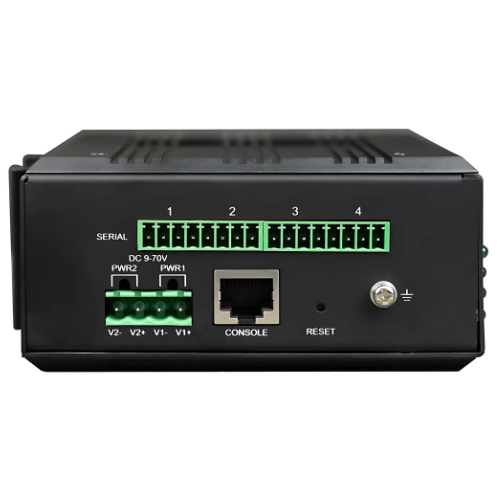

Gigabit Ethernet Switch with 8 Gigabit Ports and 4 SFP Ports - Asset Track Pro - Image 2

Gigabit Ethernet Switch with 8 Gigabit Ports and 4 SFP Ports – Asset Track Pro

High durability switch with 8 Gigabit ports, 4 SFP ports, ERPS ring protocol, wide power input, and protection for critical networking environments.

SKU: ATPEWF-192 Category:

Description

Features

  • Support port bandwidth limit, port flow control, broadcast storm suppression
  • Support Web, CLI, Telnet management functions;
  • Power down alarm, loop alarm;
  • Can support POE (POE+) equipment;
  • Support port mirroring, support Syslog, support Ping command, etc.
  • Support COS, DSCP, 8 queues, support WRR, SP, WFQ scheduling mode, policy QOS
  • Support port traffic statistics and online upgrade
  • Support STP/RSTP, MSTP, support EAPS, ERPS
  • Support IGMP Snooping V1/V2/V3, support GMRP
  • Supports manual aggregation and static/dynamic LACP protocol



Technical Specifications

Supported Protocols IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak
Maximum Frame Size 10K
VLAN Address 4K
MAC Address 8K
Buffer 4Mbits
Backplane Bandwidth 56Gbit
Filtering and Forwarding Rates 10Mbps：14880pps
100Mbps：148800pps
1000Mbps：1488000pps
Storage Temperature 104⁰F to 185⁰F (40⁰C to 85⁰C)
Working Temperature 104⁰F to 185⁰F (40⁰C to 85⁰C)
Humidity 0% to 90% non to condensing
MTBF ＞100,000 hours
Power Supply input DC 9 to 48 V or AC 9 to 48 V
Power Consumption Maximum 17 W
Transmission Rate 10 Mbps or 100 Mbps or 1000Mbps
Communication Mode Full-Duplex and Half-Duplex
Switch Capacity 56 G
Ports ≤ 8
Function LACP, POE, QoS, SNMP, VLAN Support
Ports 8 Ports
Uplink Ports 4 Gb SFP
PoE Ports 8 x 10 Mbps or 100 Mbps or 1000Mbps POE Ports
Appearance Structure 5.2362 in x 4.7244 in 1.9685 in (13.3 cm x 12.0 cm x 5.0 cm)
Weight 2.094 lbs (0.95 kg)
