Description
Overview
Asset Track Pro Gigabit Fiber Optic Converter for CATV & FTTX with Adjustable Output Power. It is optimized for 1550 nm wavelength and is packaged in a 2U 19 in (48.26 cm) rack housing. The product is flexible enough to perform all the requirements of CATV, FTTX and HFC applications. The device chooses a high-performance PUMP laser and circuit (include ACC and APC), and optical output power is adjustable and flexible for network link loss budget. Asset Track Pro gigabit fiber optic converters provide monitors and associated alarms for all vital characteristics. The status and management of the device can be monitored and managed either from the LCD front panel display & Web or remotely via Ethernet based SNMP NMS. The device also supports multiple optical output by build-in PLC splitter and FWDM (1310 nm or 1490 nm) optical multiplexer for Triple-play FTTX network applications.
Features
- Standard 19 in (48.26 cm) 2U Rack YEDFA
- 8 or 16 or 32 output ports optional
- Output powers range: 8 dBm or 16 dBm or 32 dBm x 16 dBm
- Output powers range: 8 dBm or 16 dBm or 32 dBm x 19 dBm
- Output powers range: 8 dBm or 16 dBm or 32 dBm x 22 dBm
- Output optical power adjustable -3 dB to 0 dB
- Wide input dynamic range (0 dBm to +10 dBm)
- High Isolation input & output (30 dB for max)
- Web browser management
- Automatic Power Control (APC) or Automatic Current Control (ACC)

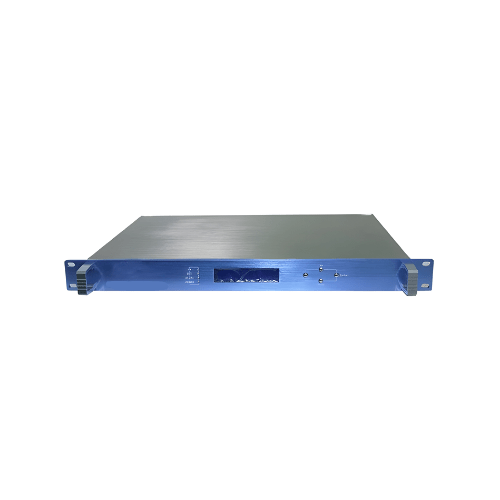

- LCD front panel display for local monitor
- Remote management via SNMP (Ethernet Interface)
Technical Specifications
| Fiber Connector | TV input:1550 nmCOM:1550 nm or 1490 nm or 1310 nm SC or APC
OLT:1310 nm or 1490 nm SC or UPC |
| Optical Wavelength | 1540 nm to1560 nm |
| Input Power | 0 dBm to +10 dBm (1550 nm), Recommend ≥ 3 dBm |
| Output Power | 8 dBm or 16 dBm or 32 dBm x 16 dBm8 dBm or 16 dBm or 32 dBm x 19 dBm
8 dBm or 16 dBm or 32 dBm x 22 dBm |
| Laser Bias Current | 16 dBm x 16 dBm2300 mA ± 200 mA
At +6 dBm input Alarm range: Out of 1000 mA to 3300 mA |
| Laser Bias Current | 16 dBm x 19 dBm or 32 dBm x 16 dBm3300 mA ± 200 mA
At +6 dBm input Alarm range: Out of 1500 mA to 4800 mA |
| Optical Return Loss | >45 dB |
| Bias Oscillation Dispersion | <0.5 PS |
| Operating Temperature | 23 °F to 122 °F (-5 °C to 50 °C) |
