Description
Overview

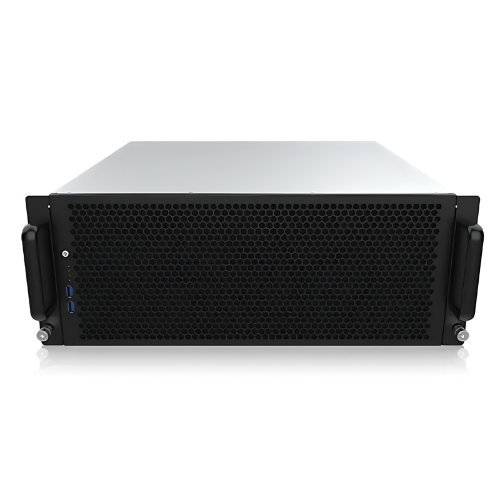

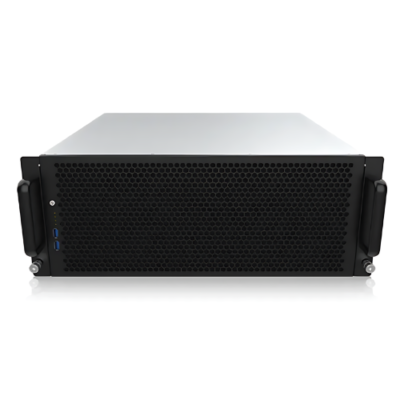

Asset Track Pro GPU computing Machine Supports 1 or 2 third-generation Scalable series processors, with a maximum TDP (Thermal Design Power) support of 205W. Provides 10 high-speed PCIe expansion slots, offering ample expansion capabilities. Supports 5 full-height, double-width high-performance GPU cards to meet high computing power requirements. Offers 16 DDR4 memory slots with memory frequencies supported at 2666 or 2933 or 3200MHz.
Technical Specifications
| Processor | Supports 1 or 2 3rd Gen Scalable ICE Lake series processors, CPU TDP maximum power consumption of 205W |
| Chipset | C621A series server-specific chipset |
| Memory | 16 DDR4 memory slots supporting DDR4 2666 or 2933 or 3200MHz LRDIMM or RDIMM memory |
| Storage Controller | PCH supports RAID 0 or 1 or 10&5 (for Windows only) |
| Storage | Rear: Support 2 x (6.35 cm) 2.5-inch SAS or SATA or U.2 HDD Internal storage: 1 x PCIe 3.0 x4 M.2 port, 3 x MiniSAS HD, 2 x SATA DOM port and 1 x COM port |
| Internet | Two Gigabit RJ2 service ports are onboard |

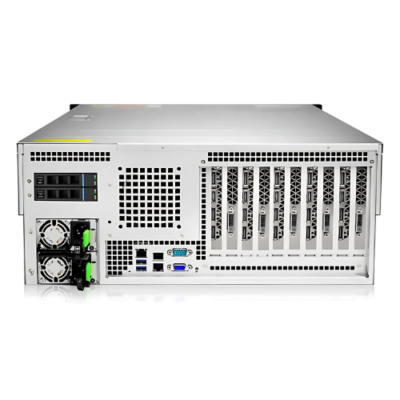

| I or O Ports | Front: 2 USB2.0 Rear: Integrated 2 Gigabit service ports, 1 independent RJ45 management port, 2 USB3.0 ports, 1 VGA interface, 1 COM port |
| PCIe Extensions | 10 full-height PCIe x16 slots{Supports 6 PCIe 3.0×8 (in PCIe 3.0 x16 slots), 1 PCIe 3.0×16, and 3 PCIe 4.0×16} optionally supports 4 PCle 3.0×8 (in PCle x16 slots), 2 PCle 3.0×16, and 3 PCle 4.0×16 |
| Number of GPUs | 5 full-length, full-height dual-wide GPU cards |
| Power Supply | 1600W, 2000W, 2200W hot-swappable 1+1 redundant power supply |
| Fan | Three 3 hot-swappable N+12038 redundant fans are standard inside |
| Manage | IPMI2.0 |
| Security | TPM or TCM (optional) |
| Operating System | Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu |
| Operating Temperature | Operating temperature: 41ºF – 95ºF. (5ºC – 35ºC) (no direct light) Storage temperature: -40ºF to 158ºF. (-40ºC – 70ºC) |
| Server Size | 17.32 in x 7.05 in x 6.95 in (440x 433 x 176.5mm) (D X W X H) |
| Weight | 132.28 lb (60kg) |
