Description
Overview

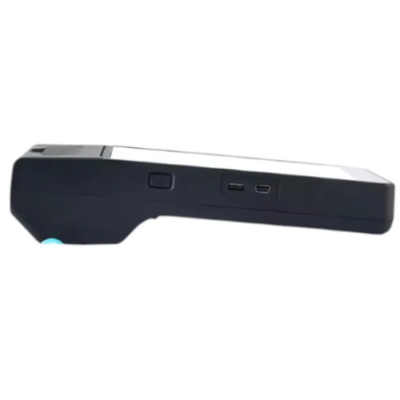

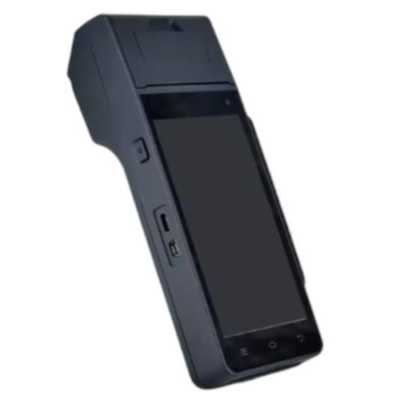

Asset Track Pro’s handheld bus ticketing and card validator is designed to provide reliable mobile ticket inspection, sales, and card recharge functions. Equipped with a 5.0 in touchscreen, it integrates a thermal printer to issue receipts for transactions. Its powerful 2800 mAh (7.4 V) battery ensures extended standby operation, making it suitable for transit and field environments. This handheld device combines high performance with practical portability for smart card management and ticket validation.
Features
- Sell paper tickets to passengers
- Perform ticket inspections
- Query and manage ticket sales data
- Recharge passenger smart cards
Technical Specifications
| Operating System | Android 5.1 or 7.1 |
| Processor | Qualcomm Quad-Core ARM Cortex-A7, 1.1 GHz |
| Memory | 1 GB RAM, 8 GB EMMC |
| LCD Screen | 5.0 in, 720 x 1280 resolution |
| Touchscreen | Capacitive, supports electronic signature |
| Communication | 4G, 3G, 2G, Hotspot, Bluetooth, Wi-Fi |
| GPS | Built-in GPS |
| USB Ports | USB 2.0 HS, Micro USB (OTG), Mini USB serial port |
| Card Slots | 1 SIM, 2 SAM, 1 SD |
| Rear Camera | 5 MP with LED flashlight |
| Front Camera | 0.3 MP |
| Scanning System | Supports 1D and 2D scanning |
| Magnetic Card Reader | Supports track 1, 2, and 3; bi-directional swiping |
| Contact Card Reader | Supports Type A (5.0 V), Type B (3.0 V), or Type C (1.8 V); EMV and PBOC compliant |
| Contactless Card Reader | ISO/IEC 14443 Type A & B, Mifare1; EMV and PBOC compliant, card reading indicator |
| SAM Slots | 1 or 2, ISO7816 compliant |
| Audio | Supports voice broadcast |
| Video | Supports playback and recording |
| Printer | Built-in high-speed thermal printer, 2.28 in (58 mm) print paper |
| Security | Virtual password keyboard; DES, 3DES, RSA, SHA-256, AES algorithms |
| Battery | Lithium, 2800 mAh, 7.4 V |
| Power Adapter | Input: 110 V to 240 V AC, 50 to 60 Hz; Output: 5 V DC, 2 A, Micro USB |
| Certification | EMV L1/L2, PCI 5.x, FCC, CE, PBOC 3.0 L1 & L2 |
| Dimensions | 7.55 in x 3.16 in x 1.81 in (191.6 mm x 80.2 mm x 46 mm) |
| Weight | 0.93 lb (424 g) |
