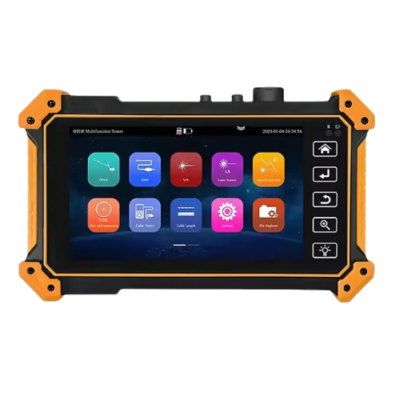

| Display |
5.55 in OLED Touch Screen, 1280×720 Resolution |
| UTP Cable Test |
Tests UTP connection status, detects near/mid/far-end faults |
| Optical Power Meter |
Wavelengths: 1625-850 nm, Range: -70 to +6 dBm |
| Visual Fault Locator |
10 mW, 650 nm, Tests multi/single mode fiber bending/breakage, Range: 5 mi (8 km) |
| Output Wavelength |
1550 nm, 1310 nm to 1610 nm |
| Length Measurement |
Up to 1.86 mi (3 km) |
| Output Power |
-5 dBm to 0 dBm Adjustable |
| Frequency |
270 Hz / 330 Hz / 1 kHz / 2 kHz |
| Stability |
±0.2 dB/15 min (test after boot for 15 minutes) |
| Rechargeable |
3 Hours charging, 6 hours working time |
| Power Output |
5V 1A Power output, works as power bank |
| Operation Setting |
Language: English, Chinese |
| Auto Off |
5 to 30 Minutes |
| Operating Temperature |
14 °F to 122 °F (-10 °C to 50 °C) |
| Dimension |
7.2 in × 4.3 in × 1.4 in (18.3 cm × 11 cm × 3.65 cm) |
| Weight |
1 lb (0.45 kg) |
