Description
Overview

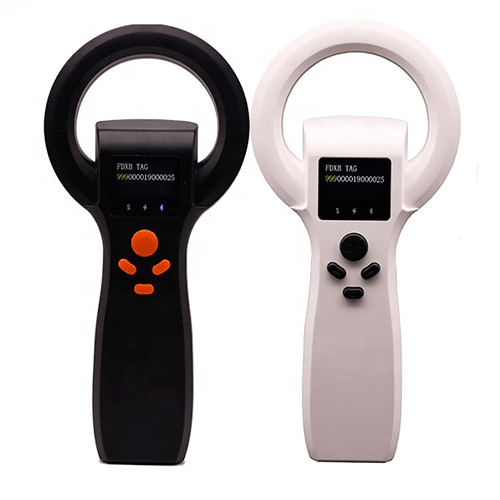

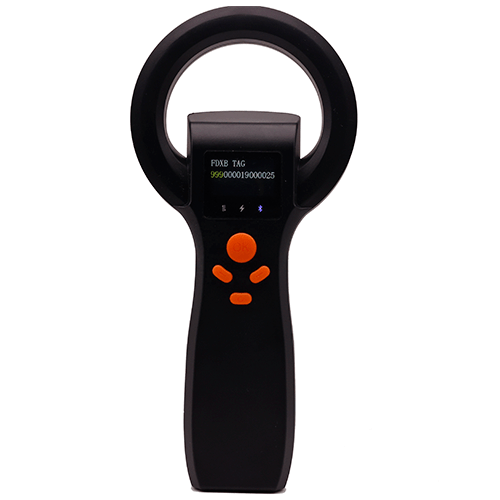

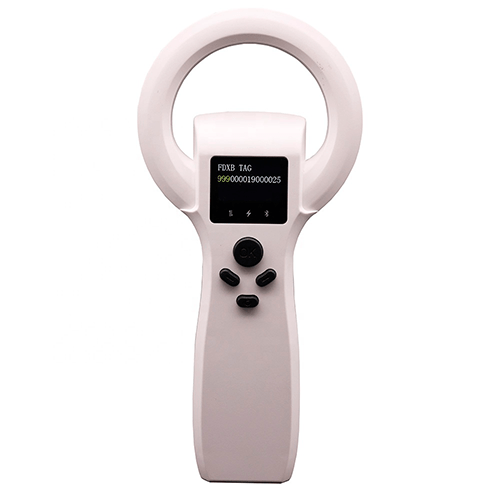

Asset Track Pro Handheld Dog Fish Chip Tag rfid reader Pet Animal Microchip Scanner support muti-protocol (FDX-A , FDX-B, HDX)with long range reading distance and OLED highlight energy-efficient display, Added the module and menu option function.It can read all meet the ISO11784 or 11785 standard pet chip, electronic ear tag,electronic foot ring and other animal electronic tags.
Technical Specifications
| Frequency | 134.2KHz |
| Reading Time | Less than 1s |
| Display Screen | Color screen 1.14 in (2.90 cm), pixels 240 × 130 |
| Protocol | ISO11784 or ISO11785, ISO14223, FDX-B, FDX-A, HDX, EM4102 |
| Signal Indication | Buzzer |
| Power Supply | 3.7 V 1000 mA Rechargeable battery |
| Reading Distance | Ear Tag: 6.30 in (16 cm) Microchip: 3.15 in (8 cm) |
| Power Consumption | Working current：500 mA (Max) |
| Data Storage | 16000 |
| Communication Mode | USB and Blue tooth 4.0 |
| Language | English |
| Weight | 3.35 oz (95 g) |
| Dimension | 7.48 in × 3.54 in × 0.87 in (190 mm × 90 mm × 22 mm) |
| Operation Temp | −4 °F to 158 °F (-20 ℃ to 70 ℃) |
| Storage Temp | −22 °F to 158 °F (-30 ℃ to 70 ℃) |
| Interface | USB and BT |
| Material | ABS |
| Continuous Working Time | 5 hours |
