| Fiber Type |
SMF (ITU-T G.652) |
| Wavelength |
1310 ± 20 nm / 1550 ± 20 nm |
| Dynamic Range |
22/20 dB |
| Test Range |
1 km, 2 km, 5 km, 10 km, 20 km, 40 km, 80 km, 120 km |
| Pulse Width |
3 ns / 5 ns / 10 ns / 30 ns / 50 ns / 100 ns / 275 ns / 500 ns / 1 µs / 2 µs / 5 µs / 10 µs / 20 µs |
| Event Dead Zone |
≤ 3.28 ft |
| Attenuation Dead Zone |
≤ 13.12 ft |
| Refractive Index |
1.000 to 1.999 |
| Sampling Points |
64,000 |
| Sampling Accuracy |
0.05 m |
| Distance Accuracy |
±(3.28 ft + test distance × 3 × 10⁻⁵ + sampling resolution) (excluding IOR uncertainty) |
| Loss Accuracy |
0.1 dB |
| Linearity |
0.1 dB |
| Reflectance Accuracy |
± 2 dB |
| Event Display |
1) Fiber end 2) Reflection event 3) Splice loss |
| VFL Working Wavelength |
650 ± 10 nm |
| VFL Output |
10 mW, CW / 1 Hz / 2 Hz |
| Stable OLS Working Wavelength |
1310 ± 20 nm / 1550 ± 20 nm |
| Stable OLS Output |
> -13 dBm, CW / 270 Hz / 1 kHz / 2 kHz |
| OPM Calibrated Wavelength |
850 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650 nm |
| OPM Test Range |
-60 to +10 dBm |
| RJ45 Line Sequence Test |
TIA568-A and TIA568-B standard |
| Optical Interface |
OTDR: standard FC/UPC, optional SC/UPC, FC/APC, SC/APC |

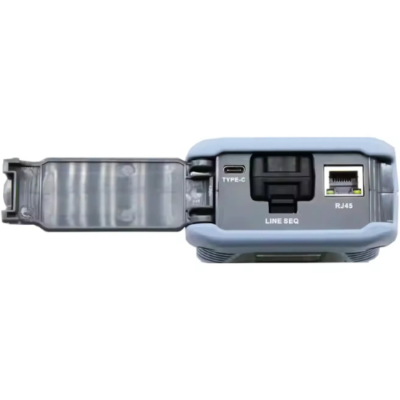

| Electrical Interface |
RJ45 port × 2, RJ45 remote module, USB Type-C |
| Data Storage |
Pluggable 16 GB micro-SD card |
| Battery |
5000 mAh lithium battery |
| Working Humidity |
0 % to 85 % non-condensing |
| Operating Temperature |
14 °F to 122 °F (-10 °C to 50 °C) |
| Dimension |
7.6 in × 3.7 in × 1.9 in (19.3 cm× 9.4 cm × 4.7 cm) |
| Weight |
1.26 lbs. (0.57 kg) |
