Description
Overview

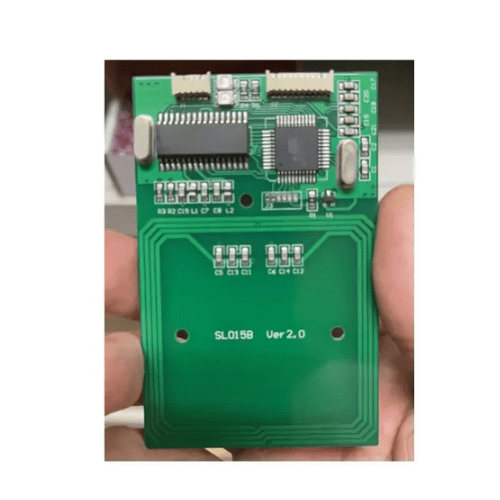

Asset Track Pro HF 13.56 MHz RFID Embedded Card Reader or Writer Module. It does auto Real-time detecting tag which moves into or out of detective range and reports through one output pin’s logic level. In addition, it integrates all necessary components and Antenna into one PCB.
Features
- ISO 15693 Compliance
- High Frequency Operation
- Support for Specific Tag Types
- Auto-Detection Functionality
- Integrated Antenna
- Reader or Writer Capability
- RS 232 Interface
- Wide Supply Voltage Range
Technical Specifications
| Operating Frequency | 13.56 MHz |
| Auto-Detection | Yes |
| Integrated Antenna | Yes |
| Reader or Writer Functionality | Yes |
| Supply Voltage Range | 4.5 V – 5.5 V DC |
| Support Card | I.CODE SLI, Tag_it |
| Protocol | ISO 15693 |
| Dimension | 3.38 in X 2.16 in (86 mm X 55 mm) |
