Description
Overview

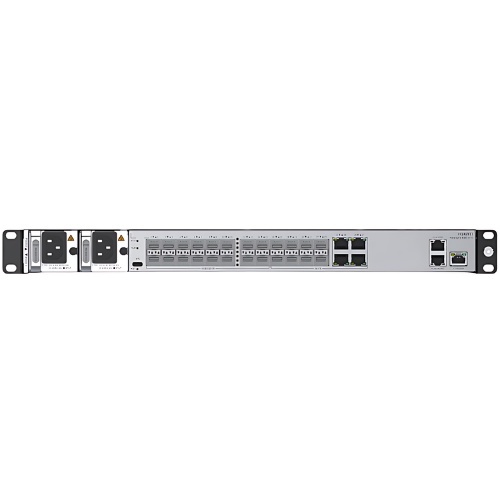

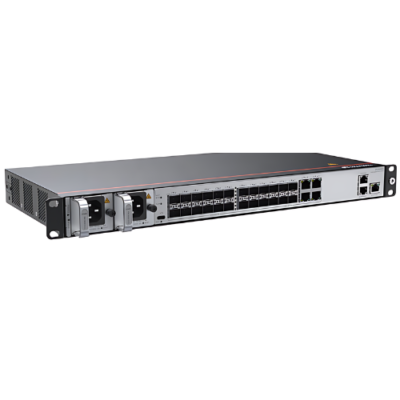

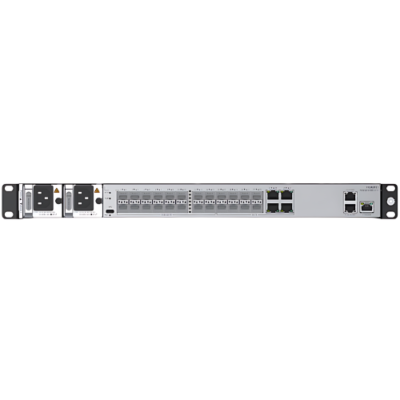

Asset Track Pro Edge Ethernet Access Router Net Engine For Cloud Era provide an all service, intelligent router platform designed for the cloud era. Using ultra-broadband pipes to construct simplified networks, and Segment Routing (SR) and Segment Routing over IPv6 (SRv6) protocols to establish intelligent connections, NetEngine 8000 combines with Hu awei’s next generation Network Cloud Engine (NCE) to implement full-lifecycle automation and proactive Operations and Maintenance (O&M). An intent-driven approach frees customers from unnecessary constraints, unleashing network potential. Available in a range of form factors and applicable to core, aggregation, and access networks, the award winning NetEngine offers high performance and reliability, with low power consumption and full evolution capabilities. Applications include functioning as a core node for an enterprise Wide Area Network (WAN), as an access node on a large enterprise network, as a Data Center Interconnect (DCI) node, or as a campus or Internet Data Center (IDC) network egress.
Technical Specifications
| Type | Enterprise Router |
| Exchange Capacity | 344 Gbps |
| Forwarding Performance | 258 Mpps |
| First Supported Version | V800R013C00SPC100 |
| Cabinet Installation Standards | ETSI (21in); IEC (19 in); IMB (3U) |
| Chassis Height | 1U |
| Typical Power Consumption | 88.98 W |
| Typical Heat Dissipation | 288.69 BTU per hr |
| MTBF (Year) | 46.18 |
| MTTR (hr) | 2 |
| Availability | 0.99999 |
| CPU | 8 core 1.5 GHz |
| SDRAM | 4 GB |
| Flash Memory | 64 MB |
| Storage | 8 GB |
| Power Supply Mode | DC |
| Rated Input Voltage | 48 V or 60 V |
| Input Voltage Range | 40 V to 72 V |
| Maximum input current | 10 A |
| Rated output power | 260 W |
| Front-end circuit breaker or fuse | ≥ 4 A |
| Heat dissipation mode | Air cooling |
| Airflow direction | From left to right |
| Noise at normal temperature | 55 dB(A) |
| Switching capacity | 344 Gbit per s (Bidirectional) |
| Maximum number of physical ports on the entire device | 28 |
| Maximum number of 10GE ports | 16 |
| Maximum number of GE ports | 28 |
| Maximum number of FE ports | 28 |
| Maximum number of electrical ports | 4 |
| Redundant power supply | 1 + 1 |
| Redundant fans | Three built-in fans. If one fan fails, the system can run at a maximum ambient temperature of (50 °C) for a short period of time. |
| Storage altitude | ＜(5000 m)16404.2 ft |
| Breakout supported | No |
| Interface rate auto-sensing supported | Yes |
| FlexE supported | No |
| IP multicast | >IGMP |
| IGMP multicast dual-device hot backup | Y |
| IGMP over GRE | Y |
| Static multicast routing | Y |
| IGMP snooping for EVPN | Y |
| Interface management>Ethernet Interface>Rate switching>GE or 10GE switching
GE or 10GE switching |
Y |
| Segment Routing>Segment Routing IPv6>SRv6 BE>Basic SRv6 BE functions
Basic SRv6 BE functions |
Y |
| Segment Routing>Segment Routing IPv6>SRv6 Reliability>SRv6 egress protection
SRv6 egress protection |
Y |
| Segment Routing>Segment Routing IPv6>SRv6 TE Policy>Basic SRv6 TE Policy functions
Basic SRv6-TE Policy functions |
Y |
| IFIT service type | Y |
| Long-term operating altitude | ≤ (4000 m) 13123.2 ft (For the altitude in the range of (1800 m to 4000 m ) 5905.44 ft. to 13123.2 ft., the operating temperature of the device must decrease by (1 °C) 1.8 °F for every (220 m) 721.7 ft. |
| Storage relative humidity | 5 % RH to 100 % RH, non-condensing |
| Short-term operating relative humidity | 5 % RH to 95 % RH (non-condensing) |
| Long-term operating relative humidity | 5 % RH to 95 % RH (non-condensing) |
| Restriction on the operating temperature variation rate | ≤ (0.5 °C) per min 32.9°F per min, non-condensing |
| Storage temperature | –40°F to +158 °F (–40 °C to +70 °C) |
| Long term operating temperature | –40 °F to +149 °F (–40 °C to + 65 °C) |
| Maximum input cable size | 0.006 in² (4 mm²) |
| Dimensions | 1.7 in X 17.4 in X 8.6 in (44.5 mm X 442 mm X 220 mm) |
| Weight | 8.3 lbs (3.8 kg) |
